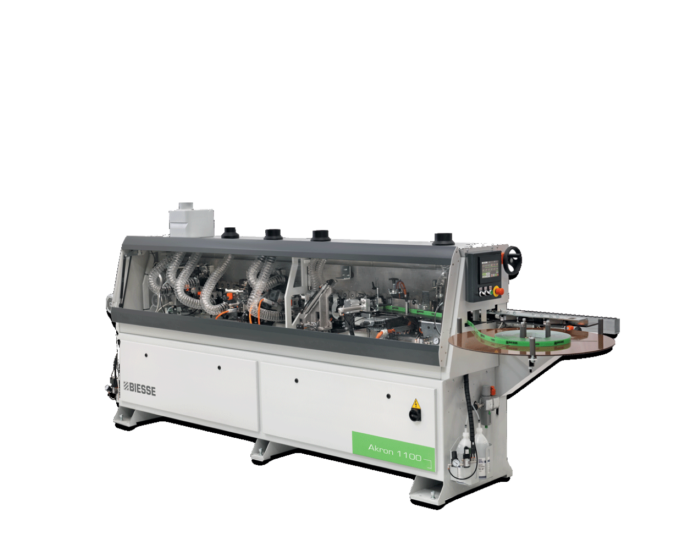

EDGE BANDING BIESSE AKRON 1130 J

EDGE BANDING BIESSE AKRON 1130 J

Categories: ,

Brand: Biesse

Single-sided edgebander for the application and processing of flat edge-banding material in coils and in strips.

Technical features and options

  • Description:
  1. Panel height: 8-50 mm,
  2. Height of edge-banding material: 12-54 mm,
  3. Thickness of edge-banding material in rolls: 0,4-3 mm,
  4. Thickness of edge-banding in strips **: 1-5 mm,
  5. Panel length: 150 mm.
  • Pre-Milling Unit Rt01 Complete With 2 High Frequency Motors (1.3 Kw Each) At 9600 Rpm,
  • Gluing Unit Sp01,
  • End Trimming Unit It01 Complete With 1 High Frequency Motor (0.3 Kw) At 9600 Rpm, With 2 Blades,
  • Fine Trimming Unit Rf01 Complete With 2 High Frequency Motors (0.3 Kw Each) At 9600 Rpm,
  • Corner Rounding Unit Ar01 Complete With 1 High Frequency Motor (0.3 Kw) At 9600 Rpm,
  • Edge Scraper Unit Rb01,
  • Glue Scraper Unit Rc01,
  • Brushing Unit Sz01 Complete With 2 Motors (0.25 Kw) At 1350 Rpm.
