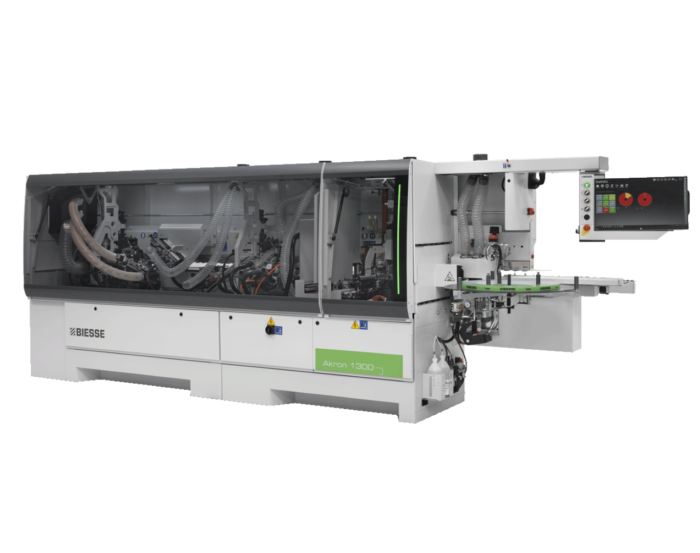

EDGE BANDING BIESSE AKRON 1330 A FULL NC
Brand: Biesse
Single-sided edgebander for the application and processing of flat edge-banding material in coils and in strips
Technical features and options
- Description:
- Panel height: 10-60 mm,
- Height of edge-banding material: 14-64 mm,
- Thickness of edge-banding material in rolls: 0,4-3 mm,
- Thickness of edge-banding in strips: 0,4-5 mm,
- Panel length: 150-3200 mm,
- Track feed speed: 12 m/min.
- Pre-milling Unit RT02. Complete with 2 high frequency motors (1.8 kW each) at 12000 RPM,
- Gluing Unit SP03,
- End trimming Unit IT03 Complete with 1 high frequency motor (0.8 kW) at 12000 RPM,
- Fine trimming Unit RF02 Complete with 2 high frequency motors (0.65 kW) at 12000 RPM,
- Corner rounding Unit AR02 Complete with 2 high frequency motors (0.65 kW each) at 12000 RPM,
- Edge scraper Unit RB02,
- Glue scraper Unit RC02,
- Brushing Unit SZ02. Complete with 2 motors (0.37 kW) at 2800 RPM,
- NC axis package – group of devices that enable the automation of machine set-up for AKRON 1330,
- Antiadhesive unit ADZ02,
- Airforce system – P1,
- Hybrid gluing chuck for granulated EVA/PUR glue instead of the standard system,
- Nitrogen tank for PUR glue pot,
- Adaptive infrated lamp – AdIRL-700,
- Device for the application od sliding liquid before corner rounding unit,
- Kit for delicate panels for glue scraper unit,
- Cleaning unit LPT02.
