EDGE BANDING BIESSE AKRON 1440 A

EDGE BANDING BIESSE AKRON 1440 A

Categories: ,

Brand: Biesse

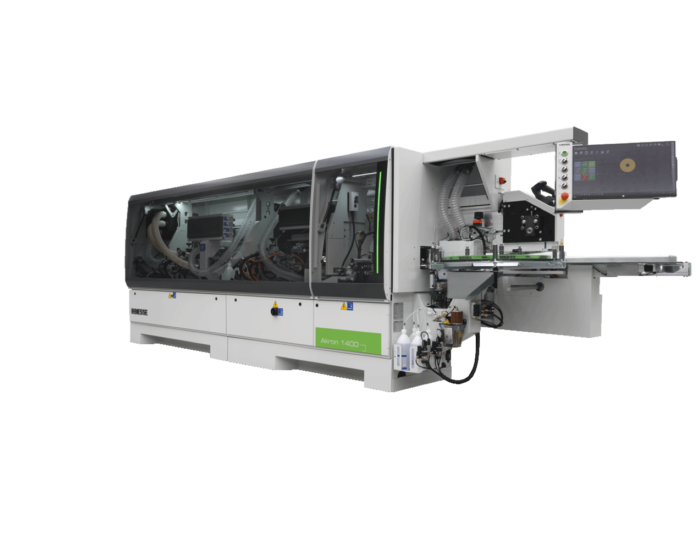

The Akron 1400 is a range of single-sided edgebanding machines for the application of edging in either rolls or strips. Compact working units designed to simplify the preparation operations are available with various configurations to suit specific production requirements

Technical features and options

Single-sided edgebander for the application and processing of flat edge-banding material in coil and in strips.

  1. Panel height: 10 – 60 mm,
  2. Height of edge-banding material: 14 – 64 mm,
  3. Thickness of edge-banding material in rolls: 0,4 – 3 mm,
  4. Thickness of edge-banding in strips: 0,4 – 12 mm,
  5. Panel length: 140 – 3200 mm,
  6. Track feed speed: 12 m/min
  • Pre-milling Unit RT02. Complete with 2 high frequency motors (1.8 kW each) at 12000 RPM,
  • Gluing Unit VC-511,
  • End trimming Unit IN-801. Complete with 2 high frequency motors (0.8 kW each) at 12000 RPM,
  • Fine trimming Unit RF02. Complete with 2 high frequency motors (0.65 kW) at 12000 RPM,
  • Multifunction 2 motors corner rounding Unit AR02 E. Complete with 2 high frequency motors (0.65 kW each) at 12000 RPM,
  • Edge scraper Unit RB02,
  • Glue scraper Unit RC02,
  • Brushing Unit SZ02. Complete with 2 motors (0.37 kW) at 2800 RPM.
