ARDESIA DEF-1 PAINTING WASTE SEPARATOR
Brand: Ardesia

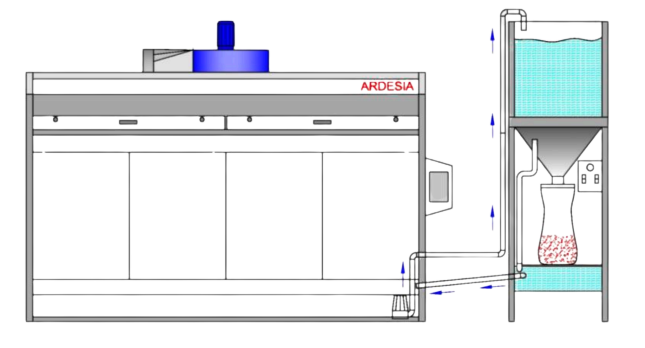

The Def sludge separation plant is equipped with an independent pump which is introduced into the tank from the cab. The waters to be purified are conveyed by the same in the separation tank. The reagent must be added to it and at the same time the stirring system will have to start working. The mud will be conveyed into a suitable container, consisting of a polypropylene bag, which will also filter any water left in the sludge.
Technical features and options
- Capacity [l] | 1000
- Length [mm] | 1840
- Width [mm] | 1350
- Height [mm] | 3180
- Pump power [kW] | 0.55
STANDARD EQUIPMENT:
- Load-bearing structure
- Stainless steel tank for treated water
- Valve with attached filter bag
- Stainless steel tank for collecting clean water
- Water shaker powered by compressed air
- Single-phase submersible water pump
- Electrical panel IP55
- Filter bags (2 pcs.)
- Ladder with safety handrail
