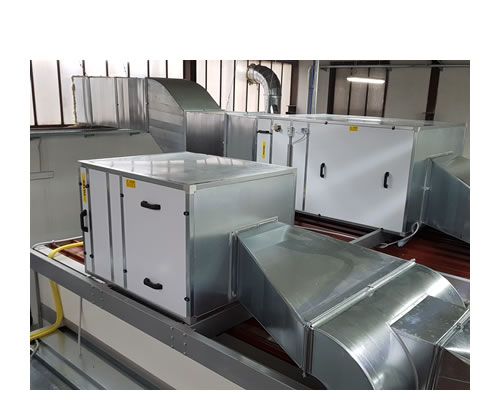

THERMO-VENTILATED HOT WATER PRESSURE UNIT ARDESIA TH-10
THERMO-VENTILATED HOT WATER PRESSURE UNIT ARDESIA TH-10 - Image 2

THERMO-VENTILATED HOT WATER PRESSURE UNIT ARDESIA TH-10

Categories: ,

Brand: Ardesia

The thermal fan is built with a supporting frame and insulated peripheral panels made of mineral wool. The exhaust fan of the drive system with a dual inlet transmission belt. Acrylic inlet filter.

Technical features and options

  • Width | mm | 1200
  • Length | mm | 1400
  • Height | mm | 1000
  • Number and power of the fan | N / kW | 1 x 4 kW
  • Heater power | kW/h | 88
  • Nominal air flow | m³/h | 10,000
  • Electrical characteristics | V – Hz | 400V – 50Hz

Equipment:

  • Exhaust fan of the drive system
  • G4 inlet filter
  • Radiator battery for hot water (DT25°C)
  • Soundproofing
