Technical features and options
- Working width: 1350 mm
- Maximum opening: 100 mm
- 12 Buffing Pads: Ø 160 mm
- Belt feed rate tappeto: da 0.5 a 2 m/min
- Belt vacuum unit: 5,5 kW
- Overall Dimensions
- Length: 2500 mm
- Width: 2300 mm
- Height: 2460 mm

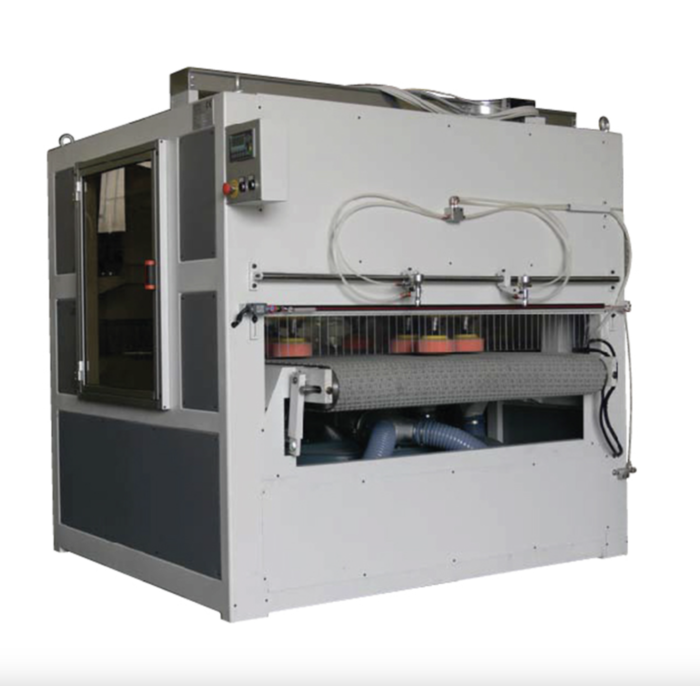

- The machine is installed downstream of the continuous cycle polishing machine Mod. L.C.6, thus allowing a line production

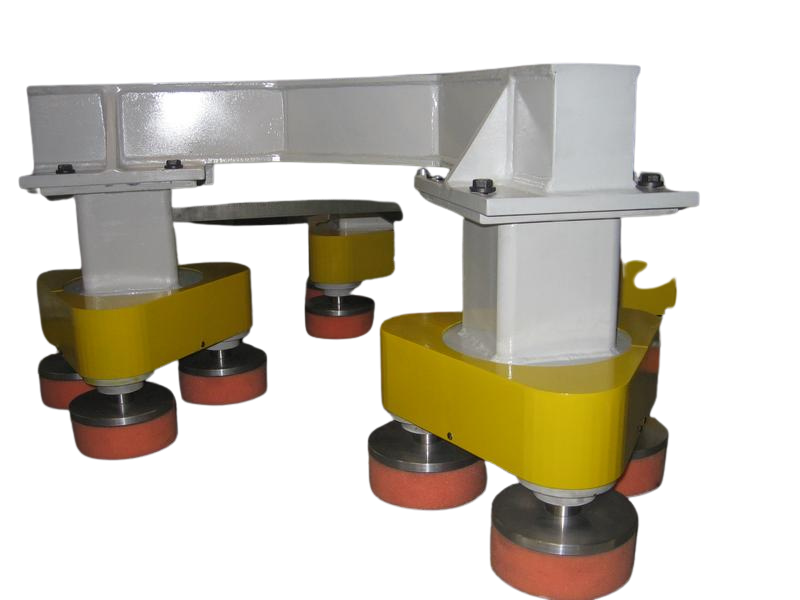

- The machine is made up of a rotating cross beam equipped with four buffing units bearing three pads each
- The machine operates through three rotating movements: each buffing pad rotates; the four buffing units rotate on their axis and the cross beam, bearing the buffing units, rotates around the central axis of the machine
- This system ensures excellent buffing and the panels being processed are perfectly clean from the polishing waste
- The panels are fed by a vacuum belt conveyor at variable speed via an inverter
- The polishing compound, which is contained in a tank, is sprayed by 2 guns directly on the panels
- The guns are installed at the entry of the machin
