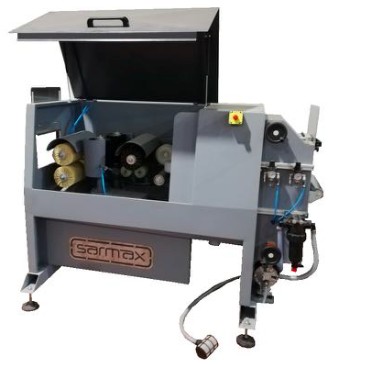

IMPREGNATION MACHINE SARMAX APACHE 5
Brand: Sarmax
Sarmax Apache 5 was created for those customers who need to impregnate elements of a fixed shape and cross-section, such as battens or boards with a maximum height of 20 cm. It is equipped with a side door that opens completely, allowing quick and effective cleaning of the internal mechanisms. This cleaning operation can be performed with a high-pressure gun connected to the machine’s hydraulic circuit. Brush adjustments can be made without stopping the work cycle. In fact, two mechanical wheels (one for all vertical brushes and one for all horizontal brushes) are located on the outside of the machine frame.
Technical features and options
- Max. working width: 300 mm
- Max. working thickness: 200 mm
- Min. element length: 500 mm
- Teflon coated interior
- Feed rate with inverter: 10 – 60 m/min
- Machine dimensions: 2000 x 1300 x 1500 mm
Machine equipment:
- Brushes for cleaning and rubbing the impregnation: 2 upper, 1 lower, 1 right and 1 left
- Brush diameter: 160 mm
- Nozzles for blowing off the impregnation: 2 pcs.
- Driven feed rollers: 2 pcs.
- Automatic pump with nozzles for spraying impregnation
