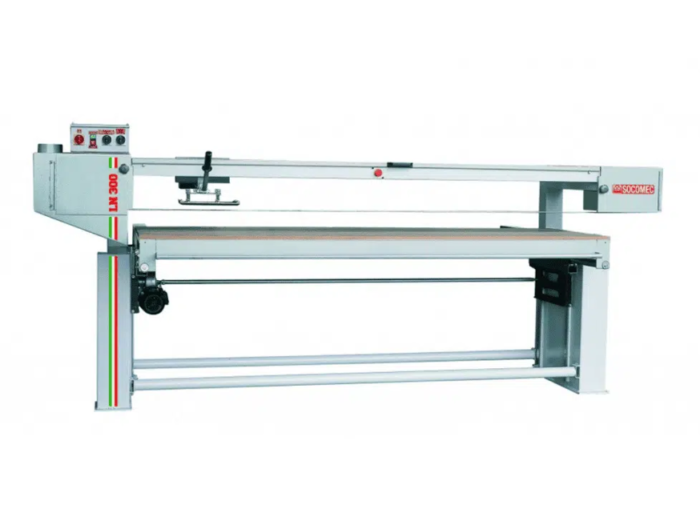

LONG BELT SANDER SOCOMEC LN300
LONG BELT SANDER SOCOMEC LN300 - Image 2
LONG BELT SANDER SOCOMEC LN300 - Image 3

LONG BELT SANDER SOCOMEC LN300

Categories: ,

Brand: Socomec

Long-belt sander with carriage dimensions 3000 x 800 mm.

Technical features and options

  • Main engine HP (KW) 4 (3.0)
  • Lifting motor KM (KW) 0.5 (0.37)
  • Overall dimensions of the carriage 3000 x 800 mm
  • Vertical stroke of the carriage 570 mm
  • Pulley Ø 250 mm
  • Belt speed 18 m/sec
  • Belt length 7850 mm
  • Belt width 120/150 mm
  • Net weight 490 kg

Standard equipment meet the requirements and ce standards:

  •  0 – 1 start
  • Automatic raising / lowering of the carriage
  • Extraction port on the left side with a diameter of Ø 120 mm
  • Maintenance instructions and electrical installation in accordance with current standards
  • Electronic self-braking system
  • Protections with applicable standards
  • Emergency STOP switch located in an ergonomic position
  • Microswitches for up and down travel of the carriage
