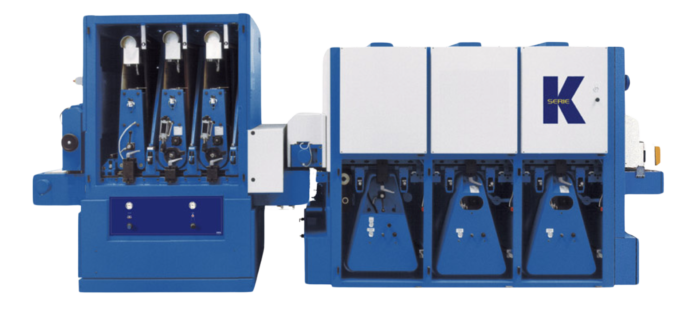

CALIBRATION SANDER COSTA KK7 - CCC + CCC 1350

CALIBRATION SANDER COSTA KK7 – CCC + CCC 1350

Categories: ,

Brand: Costa

Calibration sander bottom – top. The machine is equipped with the following working units: C25 - C25 + C25 + C33.

Technical features and options

Working area:

  • Working width: 1350 mm
  • Abrasive belt length for maximum width: Working width + 30 mm
  • Fixed working height: 1000 mm

Abrasive belt system:

  • Automatic belt oscillation with a photocell system
  • Safety sensor stops the machine in case of belt breakage or slippage
  • Time-activated air blowers for photocell cleaning (1 per unit)
  • Grinding belt tracking control exclusively via self-cleaning, contactless optical sensors

Safety features:

  • Rubber roller at the machine entrance linked to a safety sensor
  • If the workpiece thickness exceeds the set value, the safety system activates

Bottom machine:

  • Abrasive belt length: 2620 mm
  • Workpiece thickness range: 3 – 160 mm
  • Table height adjustment via geared motor: 0.55 kW

Top machine:

  • Abrasive belt length: 2620 mm
  • Workpiece thickness range: 3 – 160 mm
  • Frame height adjustment with working units via geared motor: 0.55 kW
