SANDER SARMAX FIBERTECH-S
Brand: Sarmax

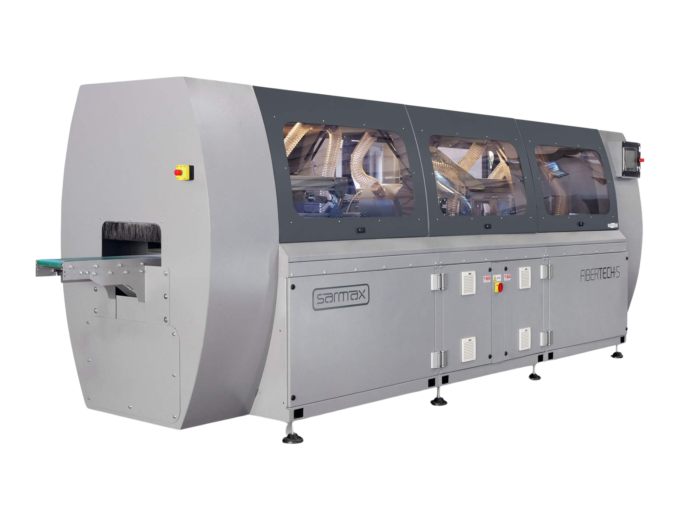

The FIBERTECH-S finishing line has been designed for the sanding of individual pieces: beads, window frames or doors, square structures of all types; unfinished products, veneered or painted items.
Technical features and options

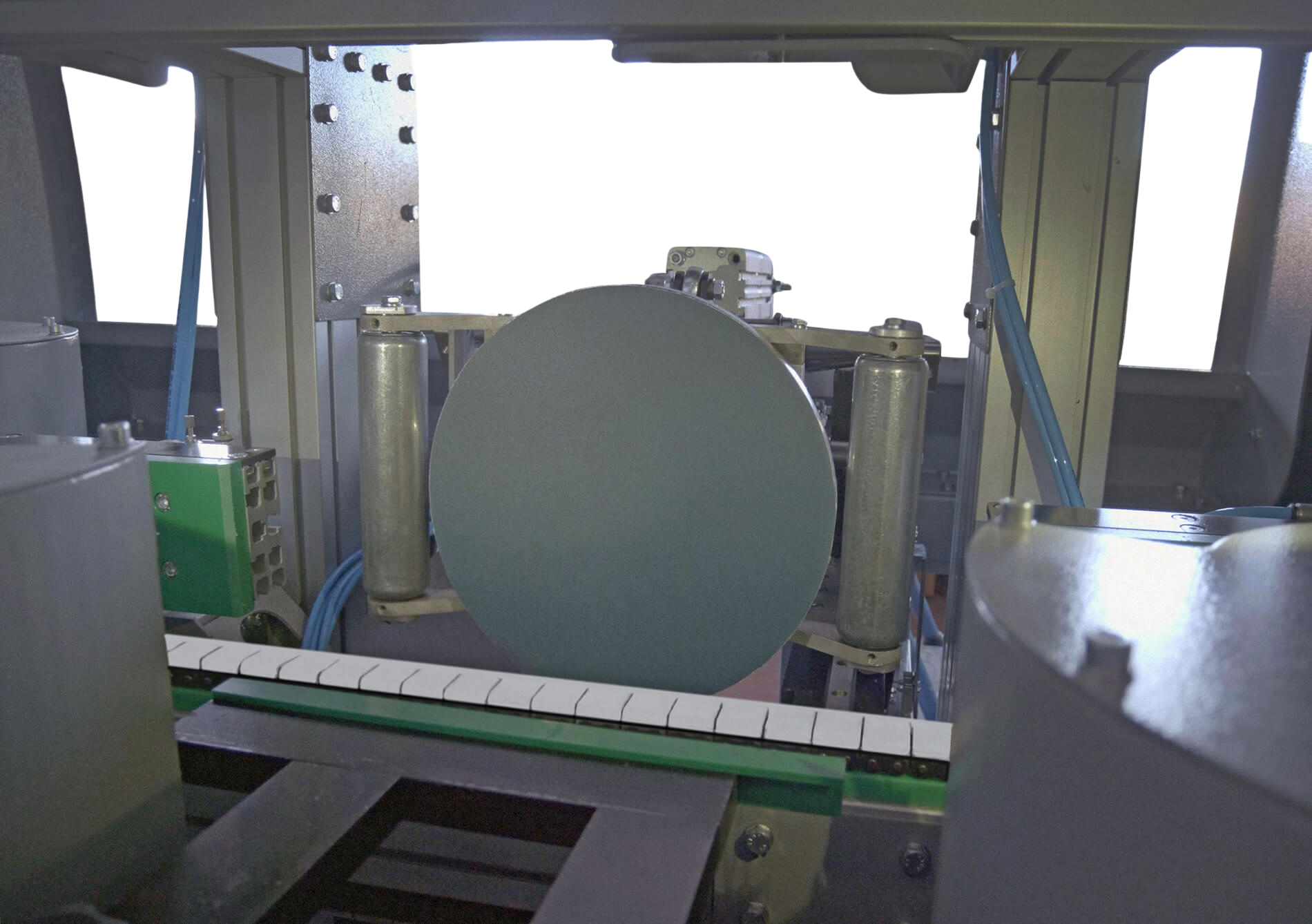

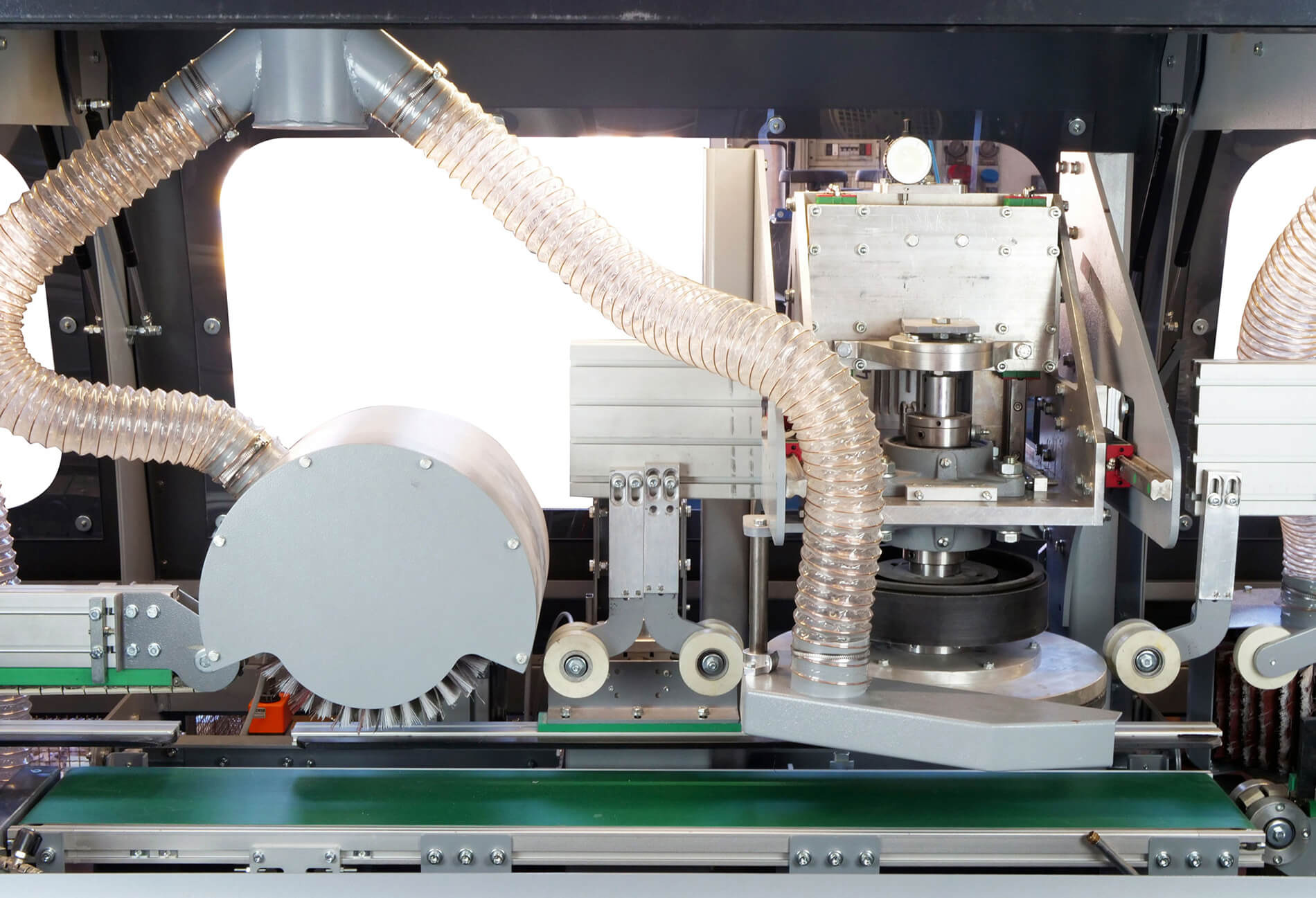

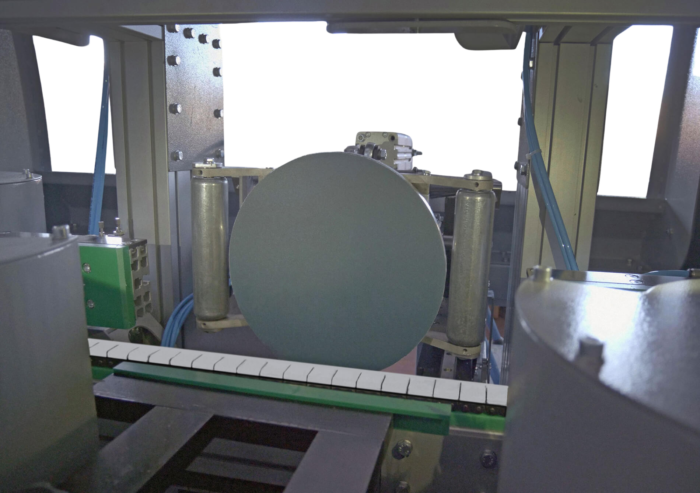

FIBERTECH-S thanks to the innovative and patented system of cross-cutting via rotary discs of the product fibres, ensures a perfect cut of the same, a result impossible to obtain with traditional systems. This system prevents lifting after the application of water- based primers or other wood preservatives, almost always avoiding the intermediate sanding normally required with traditional sanding systems, thus resulting in significant time-saving and above all preventing the removal of an important part of the previously applied product. In practice this means important labour saving in many manual processes, greater safety at work and above all longer life of the product with no, or at least insignificant, removal of the previously applied protective materials.
The FIBERTECH-S line has been designed in a modular manner in order to allow the machine to be composed with the number and type of operating groups most suited to the needs of each customer.
- Overall dimensions: 5800 x 1400 x 1800 mm
- Worktable height: 900 mm
- Weight: 3800 kg

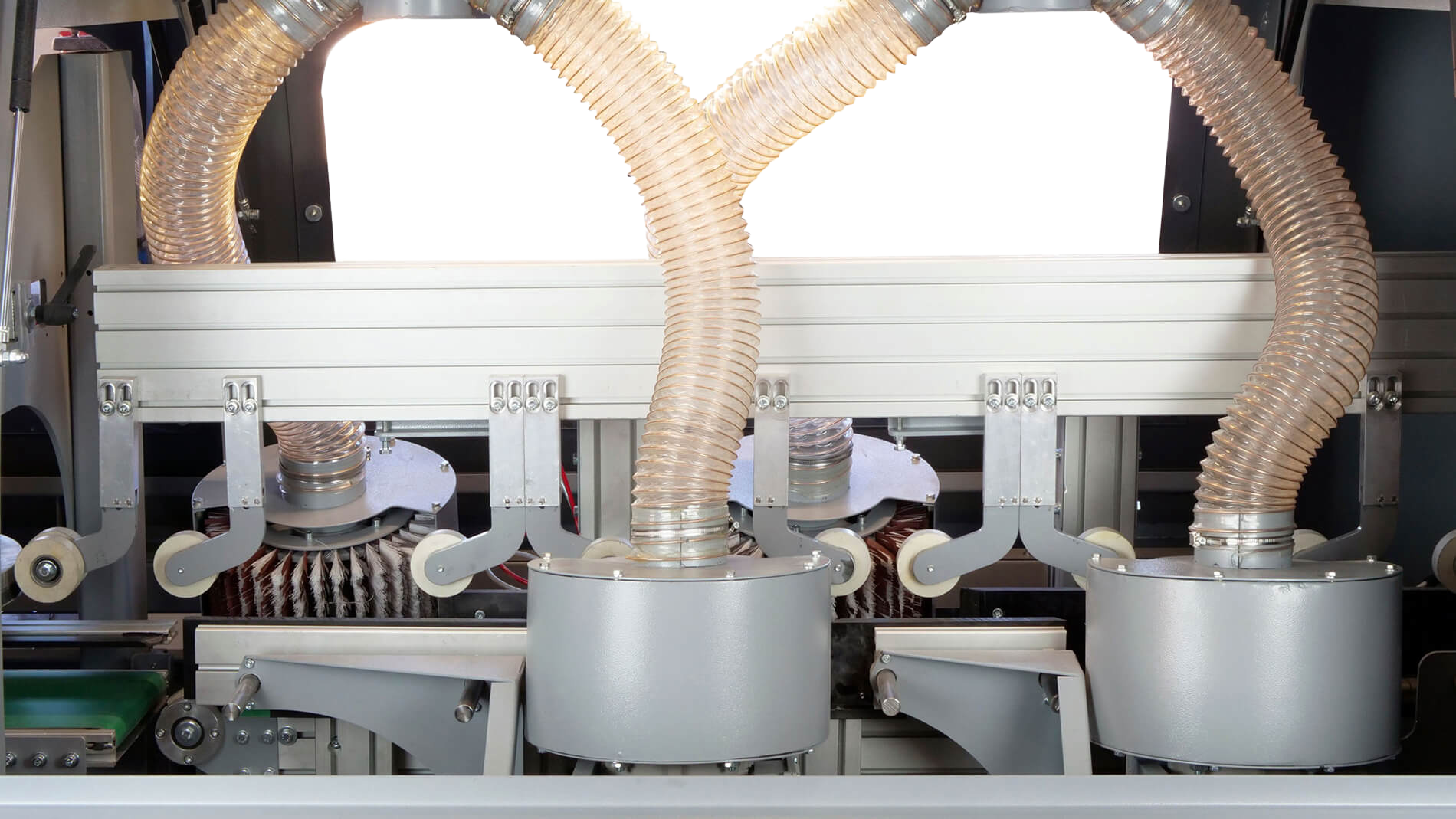

- Number of brushes: 4 (1 left, 1 right, 1 top, 1 bottom)
- Vertical brush diameter: 350 mm
- Horizontal brush diameter: 300 mm
- Number of grinding discs: 4 (1 left, 1 right, 1 top, 1 bottom)
- Voltage: 400 V / 50 Hz
- Total power: 12 kW
- Air pressure: 6 bar
- Extraction ports: 6 x 120 mm
- Electrical cabinet: IP 55
