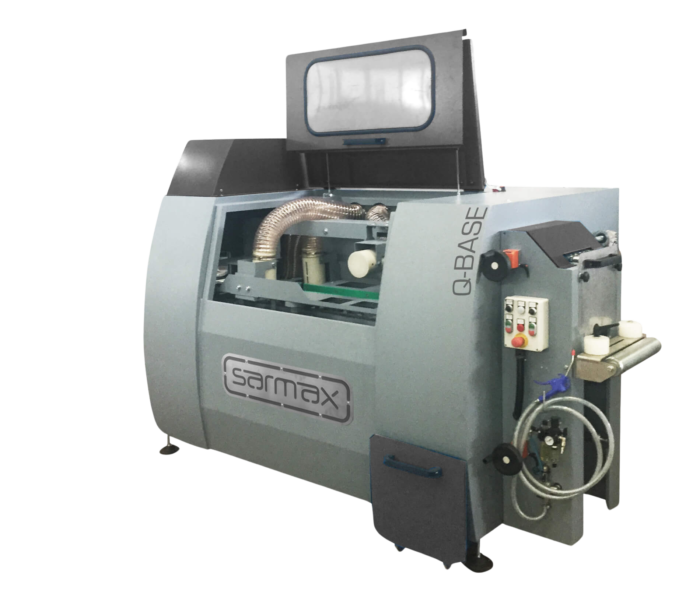

IMPREGNATION MACHINE SARMAX APACHE Q-BASE
Brand: Sarmax
Thanks to the new Q-BASE coating technology applied to the non-assembled element, it is possible to obtain total coverage of your window and door frame in accordance with the strictest international standards, which is the indispensable characteristic of obtaining any quality certification.
Technical features and options

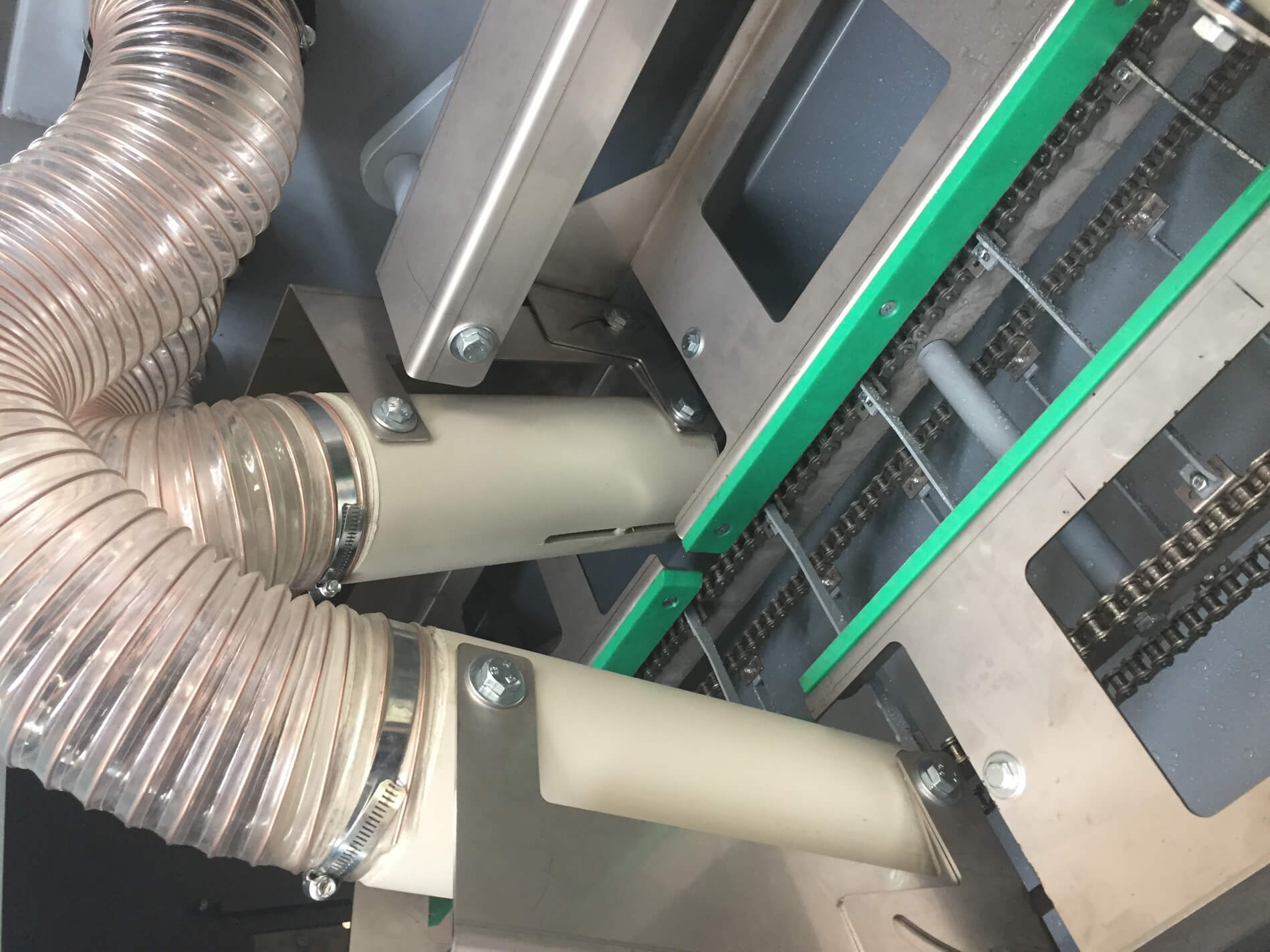

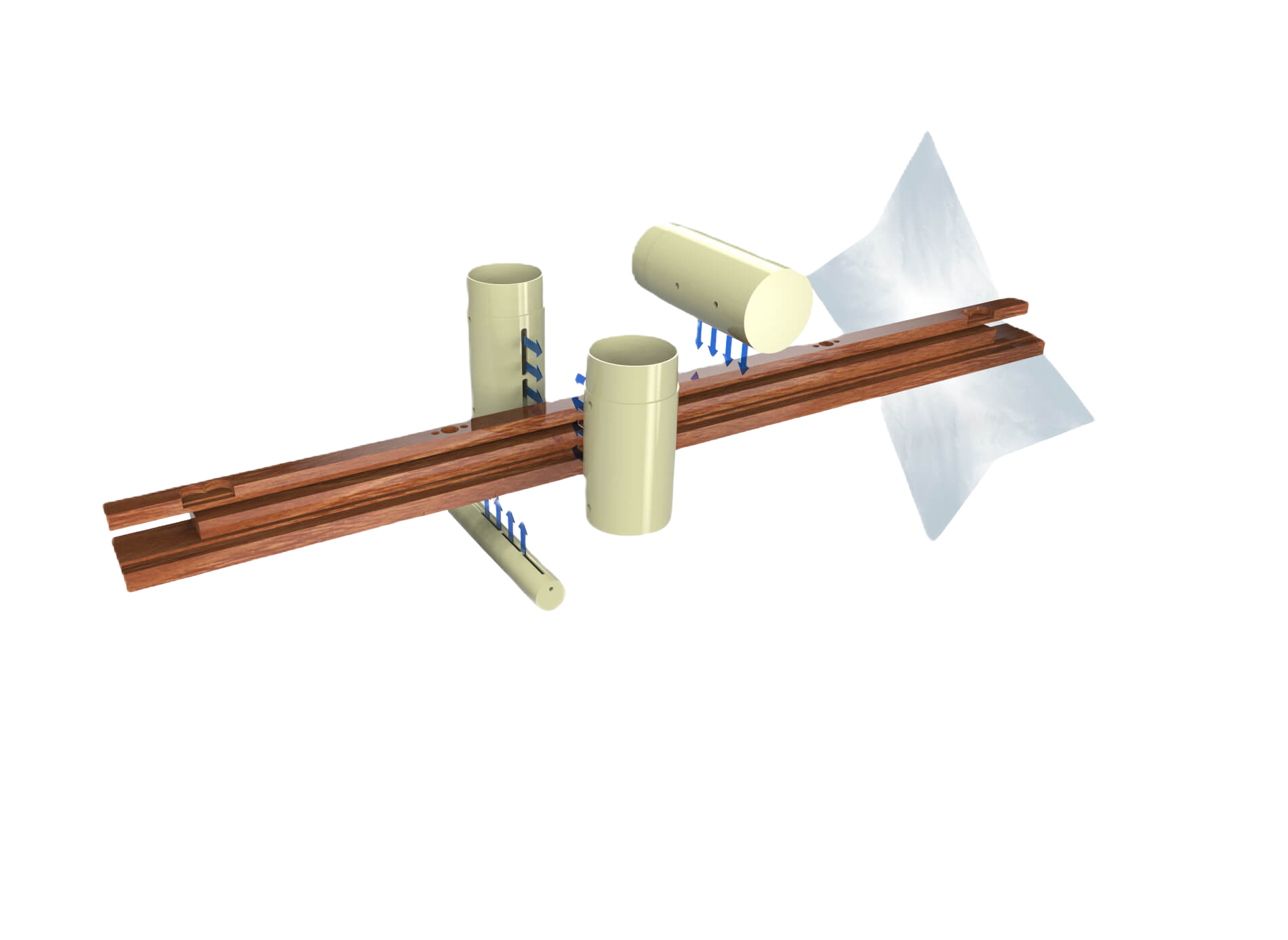

The Q-BASE “pass-through” method will guarantee you the most elevated sustainable technology in accordance with the highest environmental impact standards, thanks to its application cycle in a protected environment and the total recycling of the surplus product, which is filtered and reused In continuous cycle. Through an ingenious high speed air blade system, there is the total elimination of the excess and residual material inside the holes and milling for hinges and seals, leaving only a homogeneous and constant coating on the entire surface of the piece.

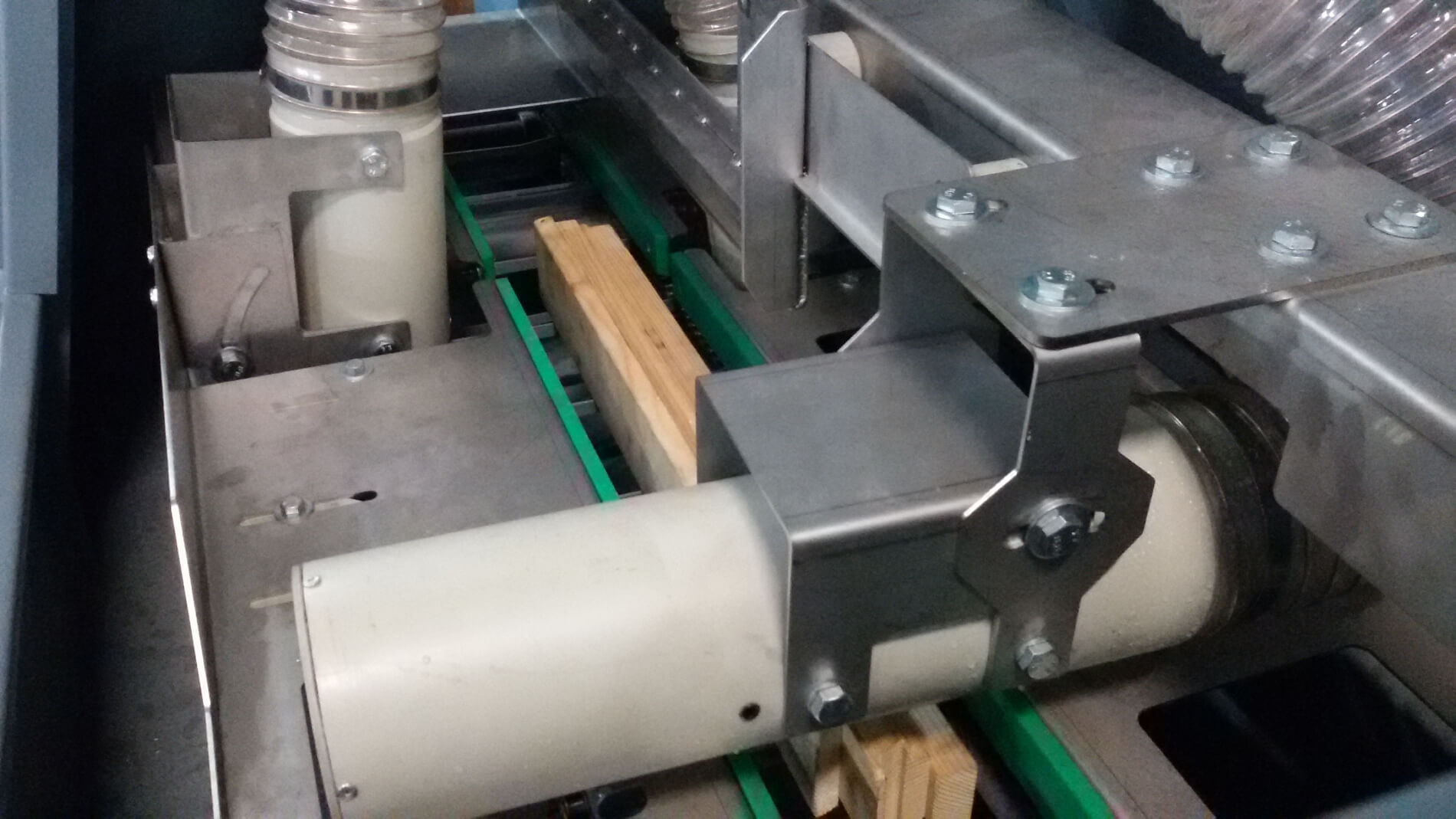

Thanks to the innovative conveyor belt transport, the uprights and crossbars of the windows slide into the machine with the only possible slightest contact, compared to traditional roller or disc systems. This gives you the greatest possible finish of the lower part of the piece and an unmatched level of finishing, eliminating almost completely the any marks left by discs or rollers, typical of the previous transport technologies.
- Overall dimensions: approximately 250x140xh150 cm
- Maximum width of the processed element: 20 cm
- Maximum thickness of the processed element: 15 cm
- Minimum length of the processed element: 30 cm
- Number of adjustable air blades: 4

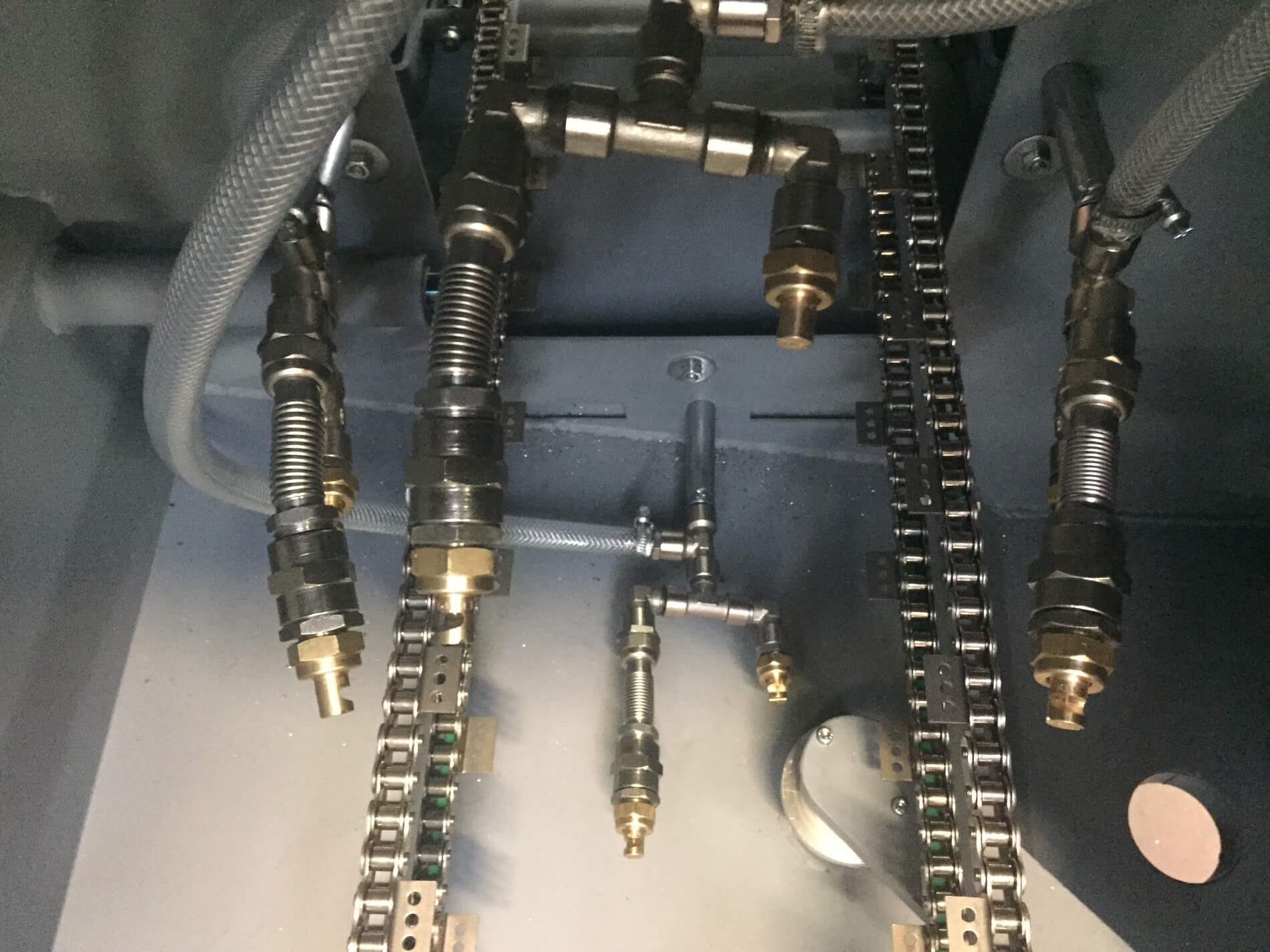

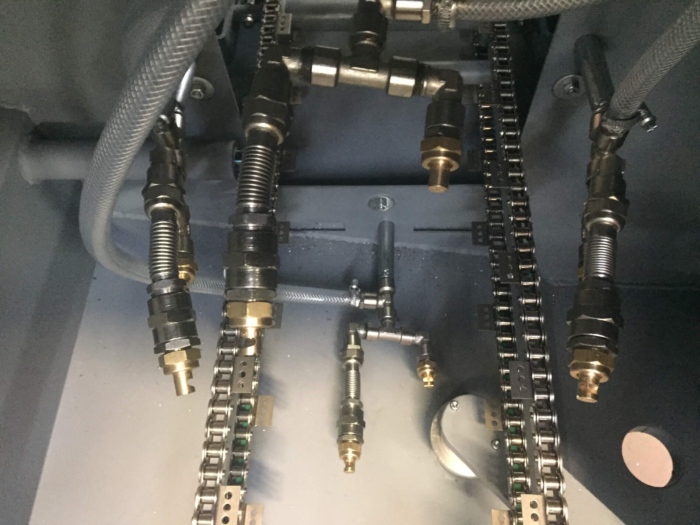

- Number of spray nozzles: 8
- Automatic spray pump: pneumatic
- Feed speed with inverter: 5 – 25 m/min
- Air consumption: 600 lt/min
- Working air pressure: 5 bar
- Fan motor power: 5.5 kW
- Feed motor power: 1.0 kW
- Tank for dispensing and filtering impregnation liquids
- Machine frame coated with anti-adhesive material (Teflon)
