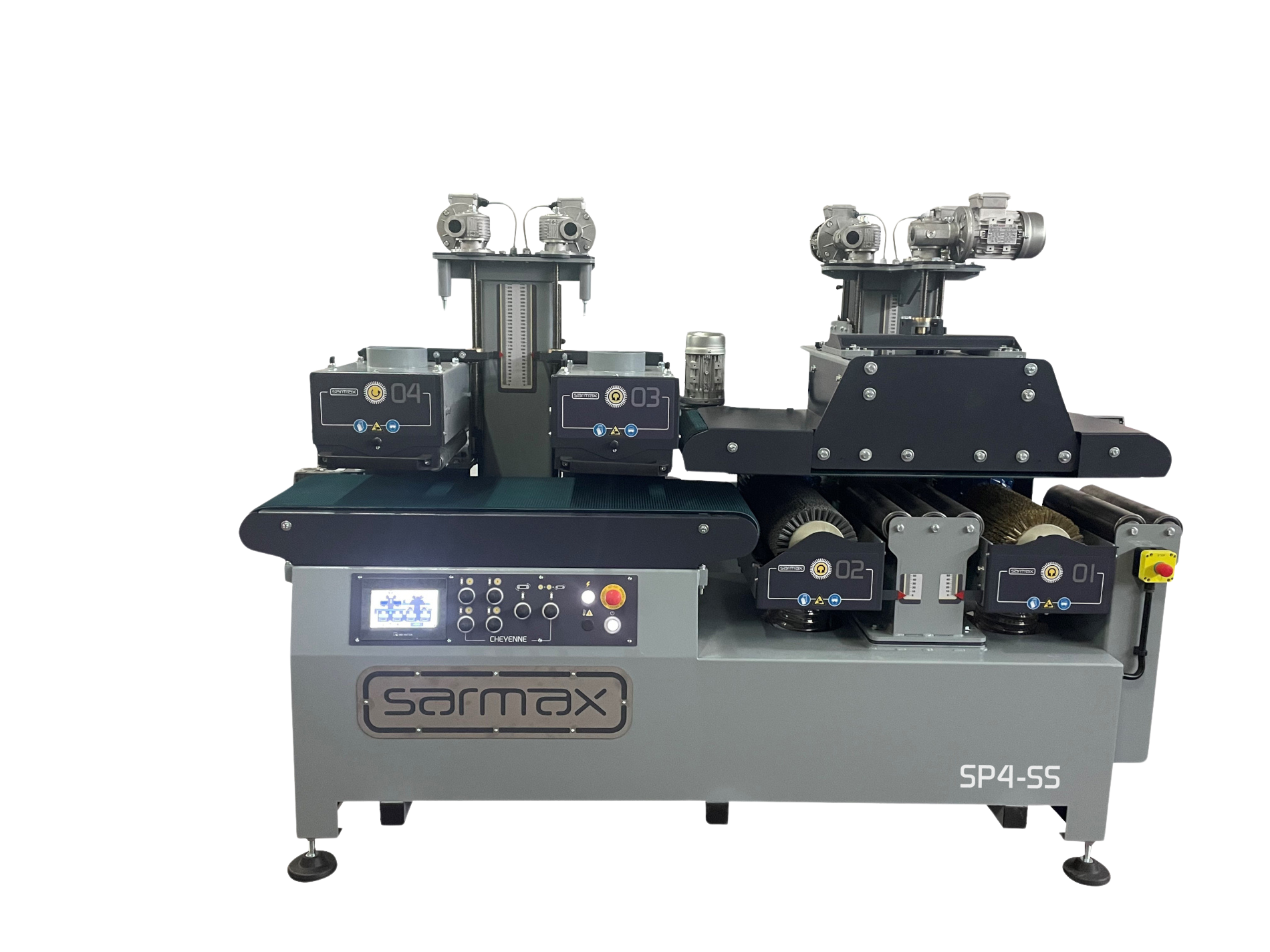

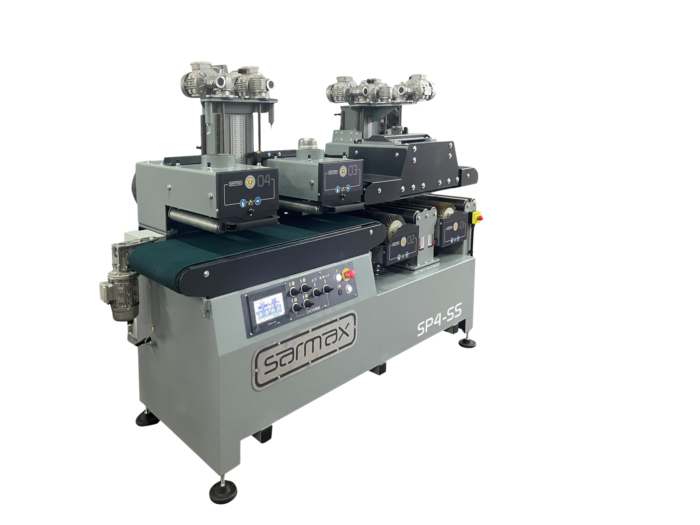

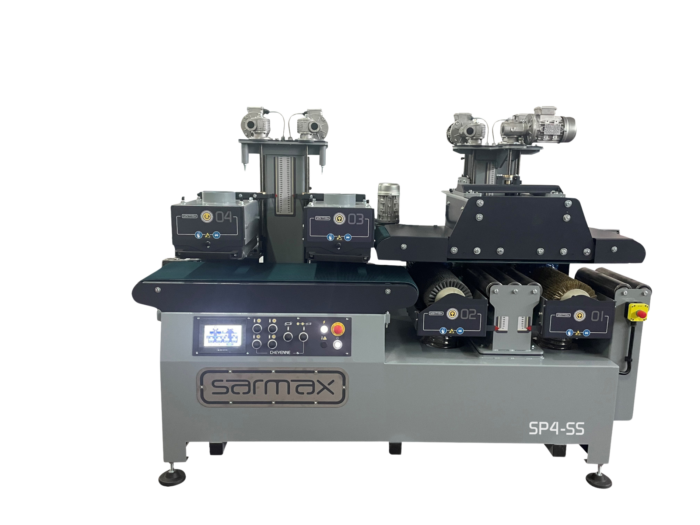

STRUCTURING BRUSHING MACHINE SARMAX SP4 400-SS

Categories: ,

Brand: Sarmax

Structuring and sanding machine for wooden and wpc components such as claddings, beads, profiles and flooring boards.

Technical features and options

  • Max. working width: 400 mm
  • Max. working thickness: 200 mm
  • Min. workpiece length: 250 mm
  • Fixed working height

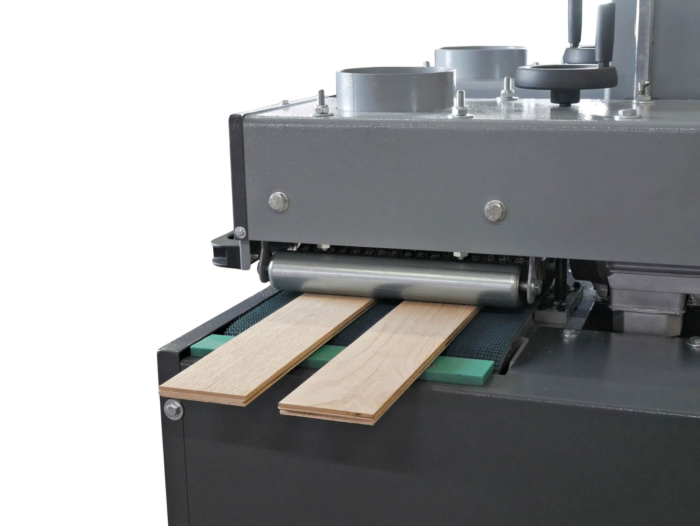

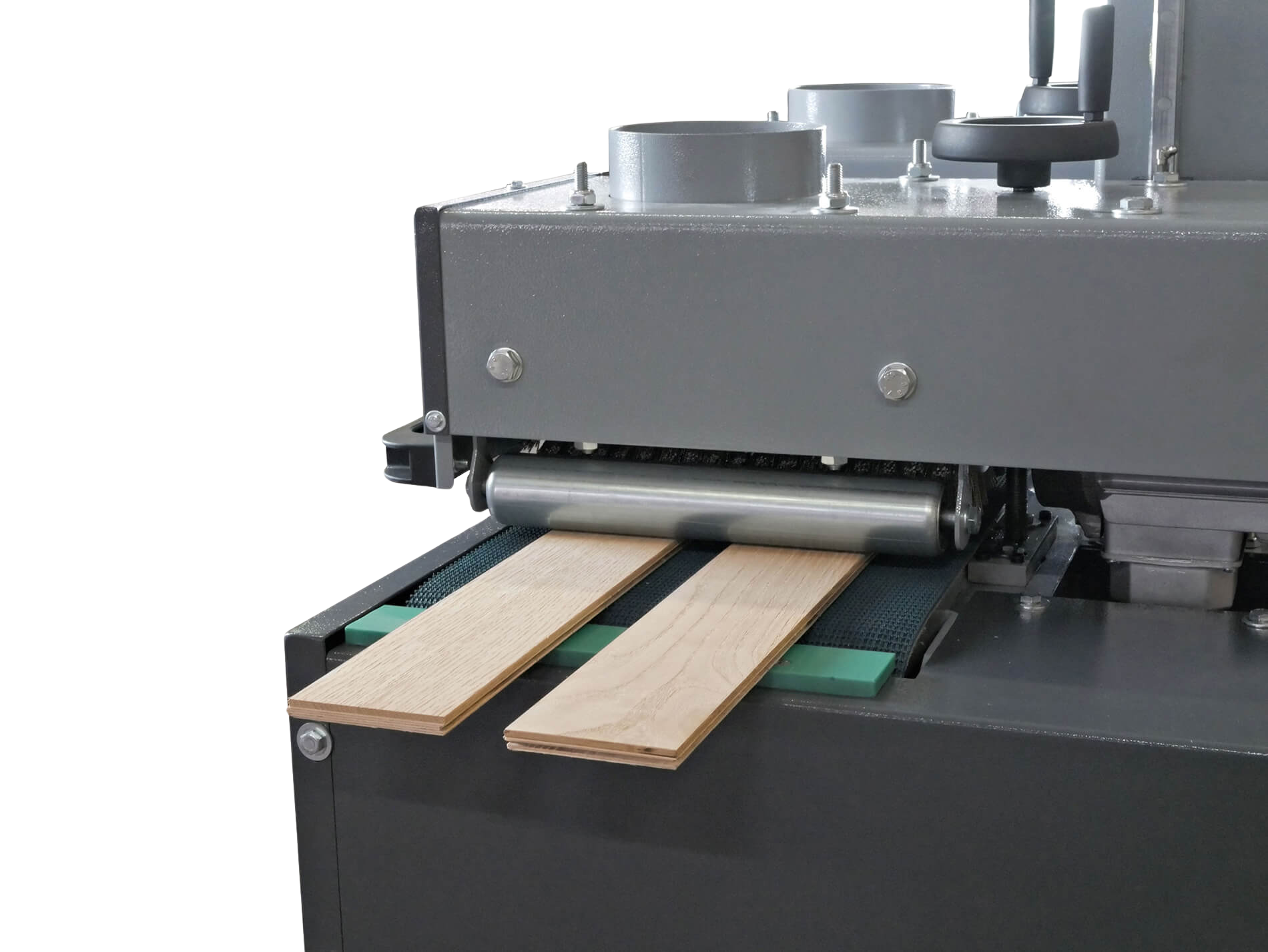

  • Feed table with inverter: 3 – 15 m/min
  • Machine dimensions: 4000 x 1300 x 1600 mm
  • Machine weight: 1400 kg

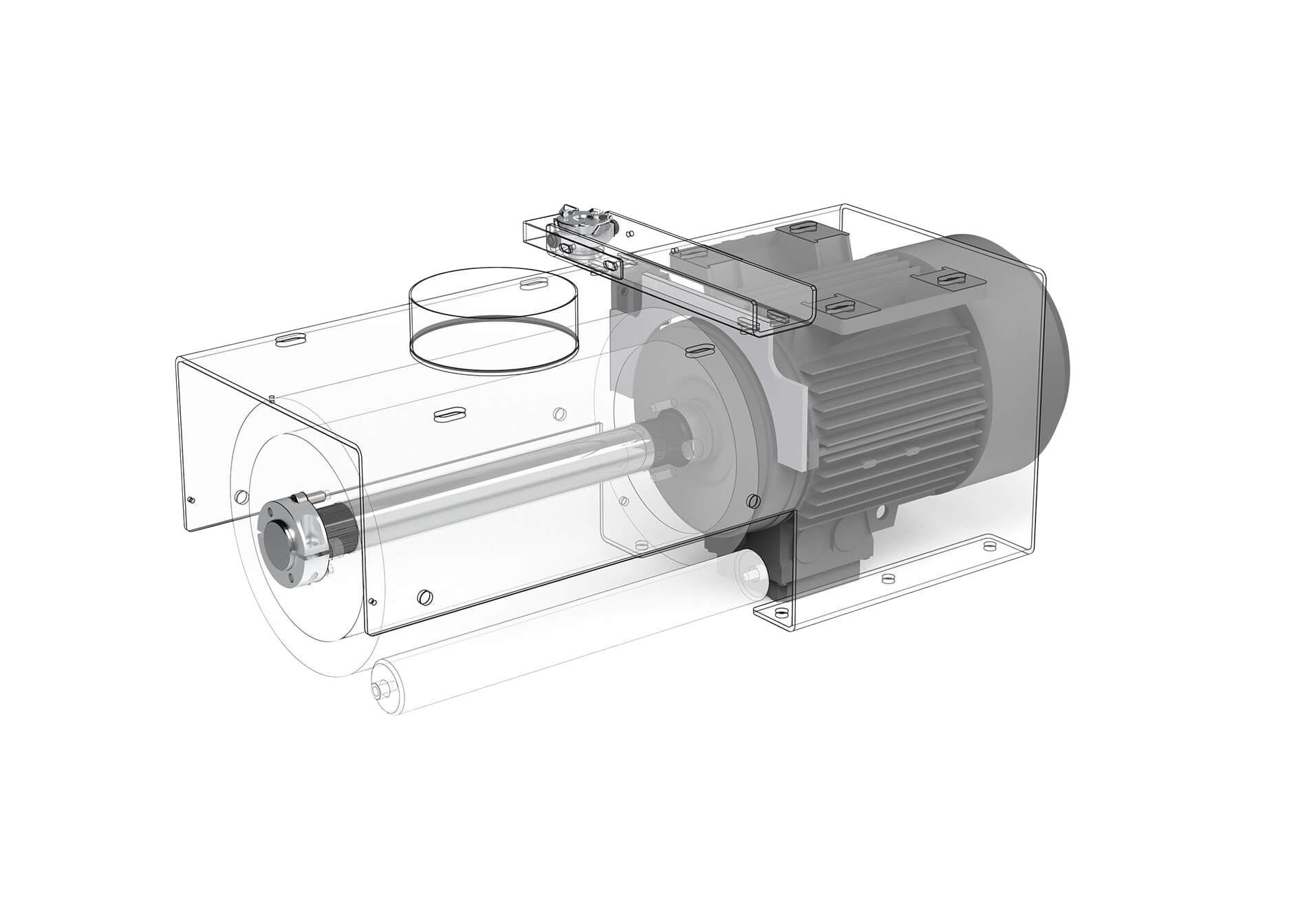

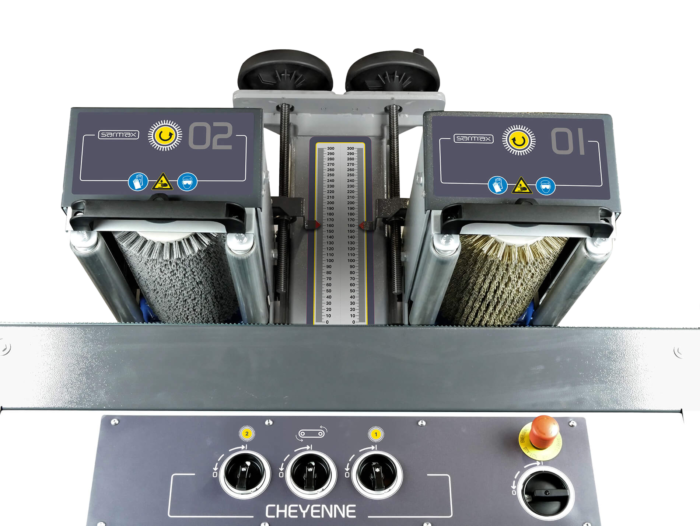

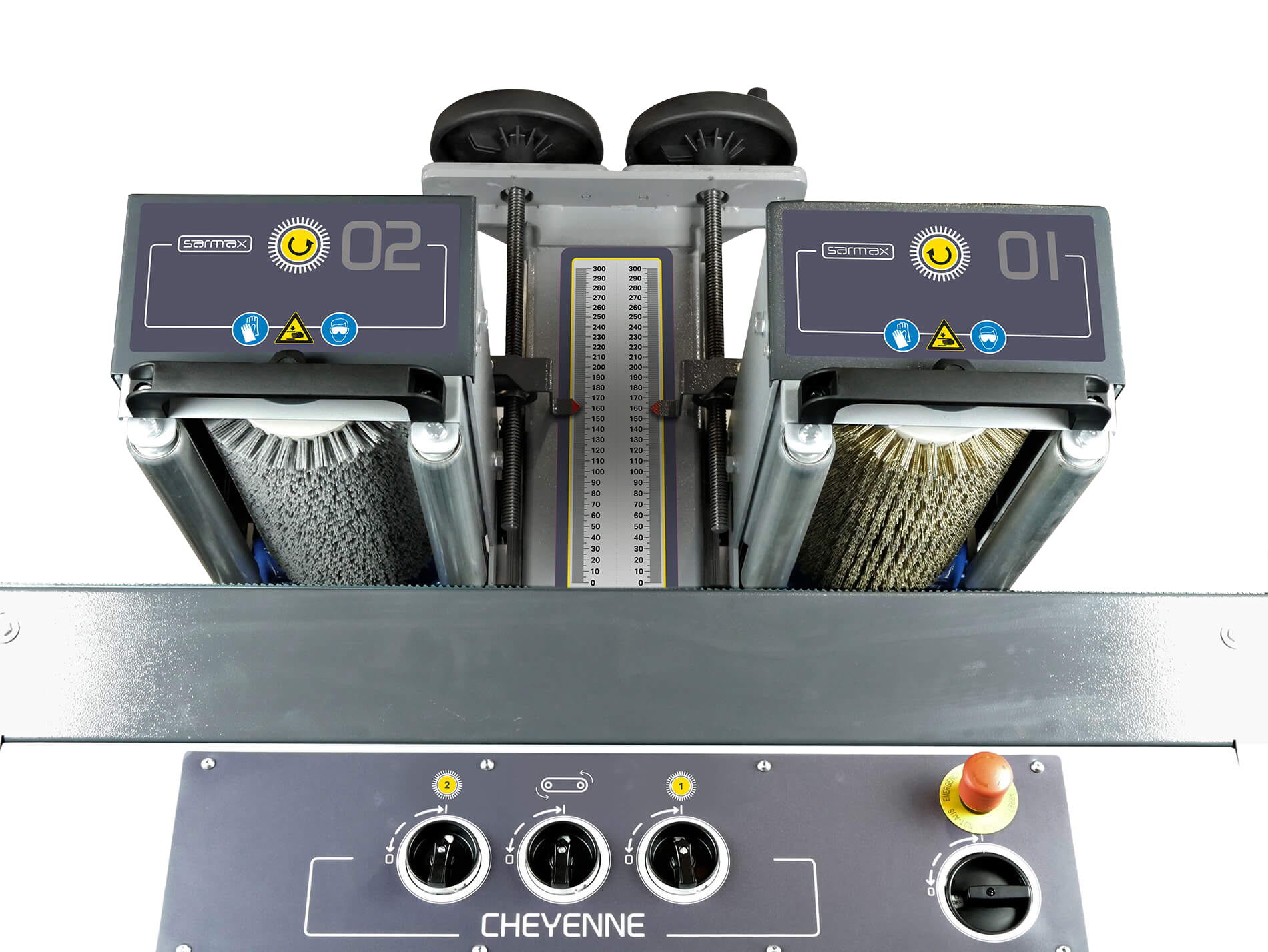

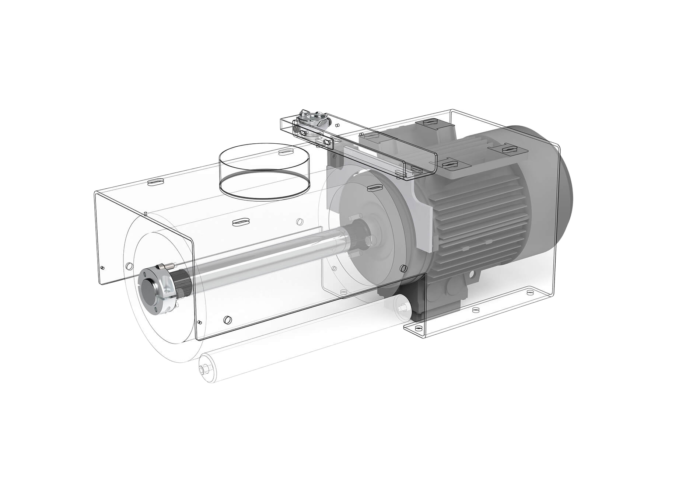

1. Working Unit – 2 Vertical Grinding Rollers

  • Brush diameter: 200 mm
  • Motors: 3 kW with inverter, 400-1300 rpm
  • Reversible rotation

2. Working Unit – 2 Lower Grinding Rollers

  • Brush diameter: 200 mm
  • Motors: 3 kW with inverter, 400-1300 rpm
  • Reversible rotation

3. Working Unit – 2 Upper Grinding Rollers

  • Brush diameter: 200 mm
  • Motors: 3 kW with inverter, 400-1300 rpm
  • Reversible rotation
