EDGE SANDER VOLPATO NTS 150 C
EDGE SANDER VOLPATO NTS 150 C - Image 2
EDGE SANDER VOLPATO NTS 150 C - Image 3

EDGE SANDER VOLPATO NTS 150 C

Categories: ,

Brand: Volpato

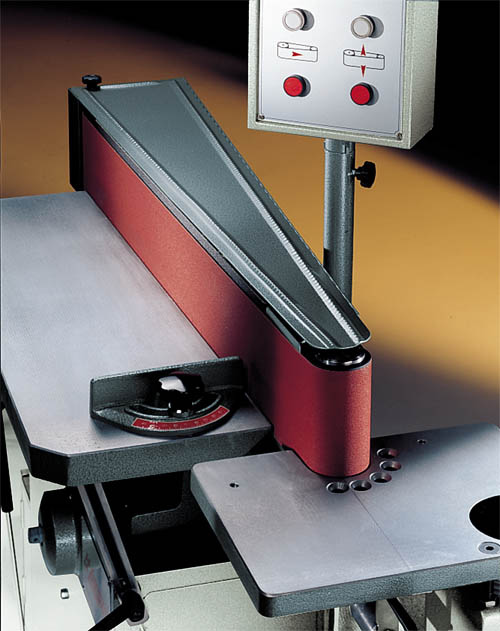

Volpato is a small vertical belt sanding station. Workbench tiltable at 45°. Possibility to sand curved elements with a driven roller + additional rollers with a small radius (diameters: 25-30-35-40-45 mm). Mechanical oscillation with a dedicated motor via a connecting rod/crank system.

Technical features and options

  • Work table for veneering:  280 x 1000 mm
  • Tilting work table: 300 x 950 mm
  • Sanding belt development: 150 x 2580 mm
  • Drive roller: diam. 75 mm
  • Additional work table: 300 x 300 mm

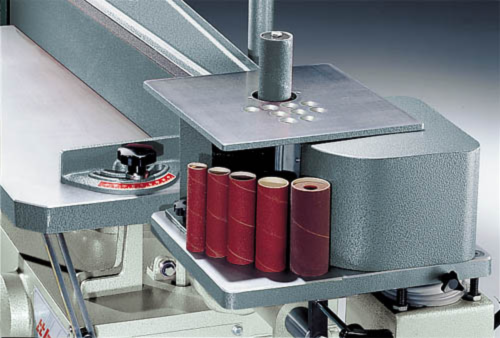

  • Available sanding rollers: 25-30-35-40-45-50 mm
  • Belt drive motor: 4 HP
  • Oscillation motor: 0.5 HP
  • Oscillation stroke: 20 mm
  • Overall dimensions: 1820 x 1050 x 1470 mm
  • Machine weight: 400 kg
