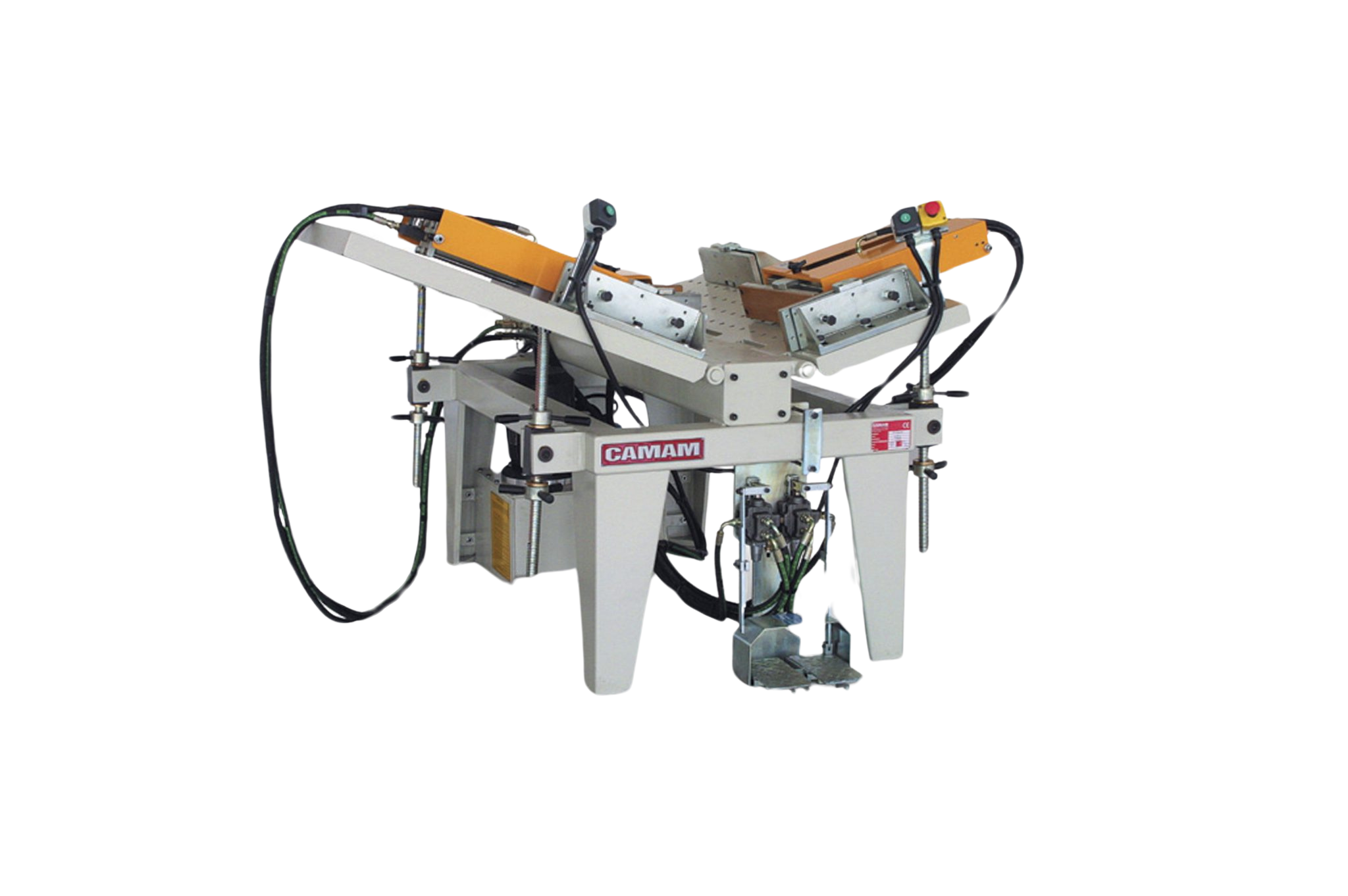

FOLDING HYDRAULIC PRESS MACHINE CAMAM SI 3L GI
FOLDING HYDRAULIC PRESS MACHINE CAMAM SI 3L GI - Image 2

FOLDING HYDRAULIC PRESS MACHINE CAMAM SI 3L GI

Categories: ,

Brand: Camam

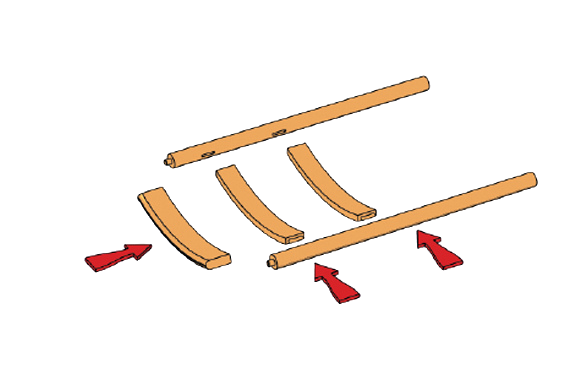

Folding hydraulic press machine for chair assembling with 3 hydraulic clamping cylinders.

Technical features and options

  • Useful working dimensions: 700 x 700 mm (max)
  • Pump motor power: 4 kW
  • Pump capacity: 40 l
  • Dimensions: 1800 x 1800 x 1500 mm (height)
  • Weight: 1100 kg
  • In conformity with CE safety norms
  • Voltage: 400 V / 50 Hz

Frame:

  • Assembled steel frame of sturdy construction
  • Height-adjustable plane via hand wheel with rack

Components:

  • 4 hydraulic cylinders with inclinable front plate, adjustable in height, depth, and longitudinally
  • 4 counter-templates with inclinable front plate, adjustable in height, depth, and longitudinally
  • 1 foot pedal for the motion of all 4 cylinders
  • 1 hydraulic pump
  • 1 electric control panel on a separate pulpit
