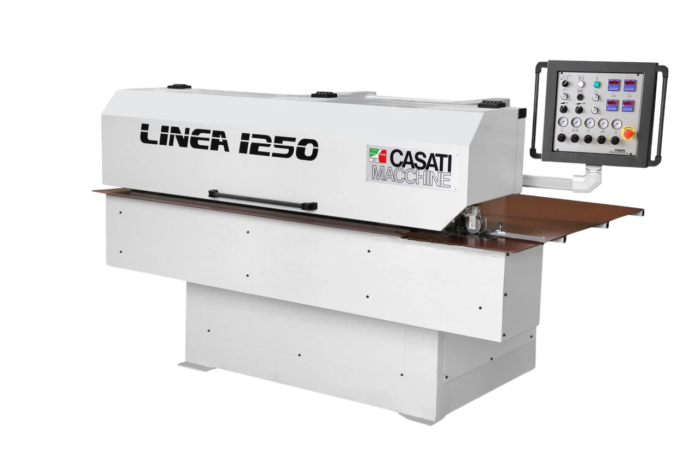

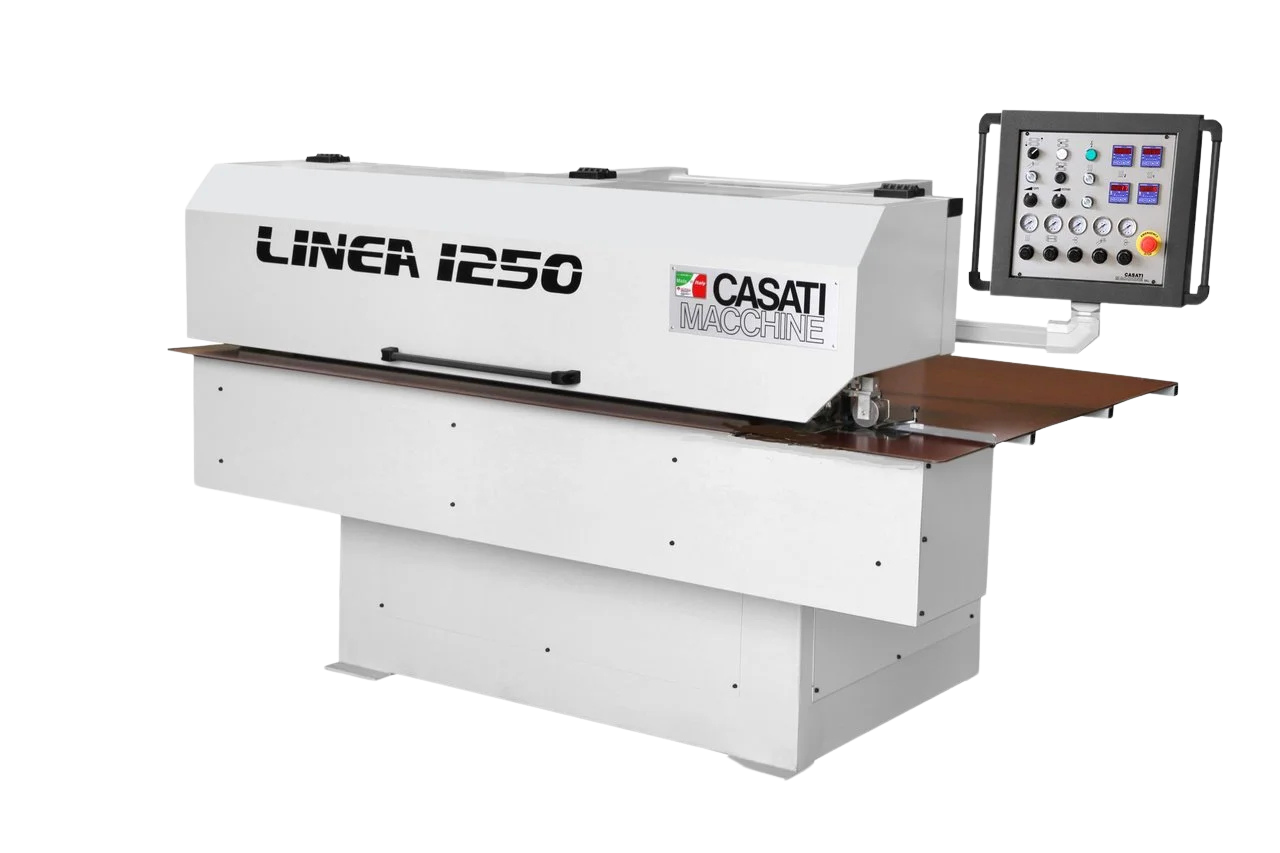

VENEER SPLICER CASATI LINEA 1250 PLUS
Brand: Casati
Longitudinal veneer splicing machine. The sturdy construction ensures constant performance and reliability over time. The dragging of the sheets takes place by means of a precision chain with stainless steel tracks; the speed is continuously adjustable. The control panel is complete with indicators that allow you to check the main processing parameters. Knobs allow quick and easy adjustments to achieve optimal operation under all conditions.
Technical features and options
- Usable arm length: 1250 mm
- Veneer thickness: approx. 0.4 ÷ 2.5 mm
- Veneer strip width: from 45 mm
- Minimum length of veneer strips: 350 mm
- Glue type for preliminary bonding: urea and PVA
- Glue type for final bonding: urea and PVA
- Feed speed: approx. 10-40 m/min
- Heating temperature: approx. 230°C
- Heating zone length: 1600 mm
- Total electrical power: 7.4 kW
- Electrical power consumption: approx. 6.0 kW
- Compressed air consumption: 5 Nl/min
- Compressed air pressure: 6÷8 bar
- Overall dimensions: 270x190x180 cm
