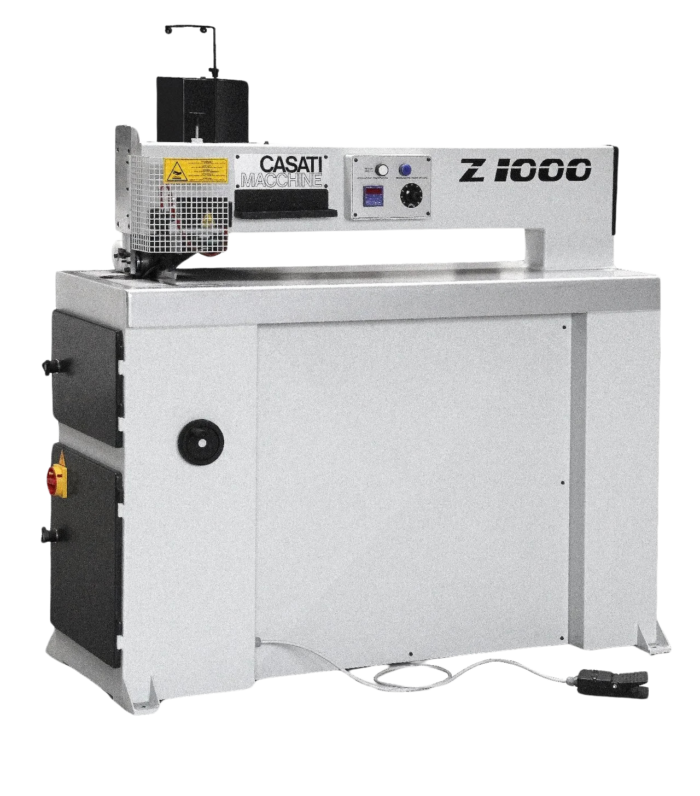

GLUE THREAD SPLICING MACHINE CASATI Z1000
Brand: Casati
The machine is designed with companies in mind where the joining operation is frequently required, but does not involve particularly high production demands.
Technical features and options
- Dimensions: 1350 x 500 x 1300 mm
- Arm length: 1000 mm
- Veneer thickness: 0.4 – 1.5 mm
- Speed: approx. 8 – 18 m/min
- Total power: 0.8 kW
- Noise level: 73.5 dB
The machine joins veneers using an adhesive thread applied in a zigzag pattern along the joining line. The adhesive is heated through an electric heater.
Key components of the machine include:
- Veneer Feeding Rollers: These are equipped with a device that compensates for thickness differences in the veneer sheets.
- Pressure Adjustment: A knob on the main arm allows for adjusting the pressure force during veneer insertion.
- Upper and Lower Rollers: These rollers push the joined sheets after new sheets are inserted.
