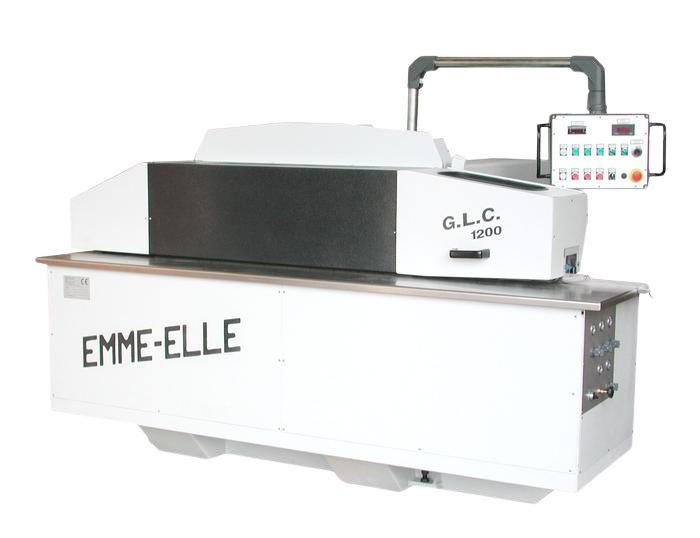

VENEER SPLICER EMME ELLE G.L.C. 1200

VENEER SPLICER EMME ELLE G.L.C. 1200

Categories: ,

Brand: Emme Elle

The longitudinal jointing machine MOD. G.L.C. 1200 allows a perfect jointing of two veneer sheets in one operation by using a patented system for the glue application.

Technical features and options

  • Heating area length: 1200 mm
  • Heating temperature: fino a 240°
  • Transport speed: 10-40 m/min
  • Glue type: UREA
  • Power connection: 6 kW
  • Voltage: 400 V / 50 Hz

Veneer sheet dimensions:

  • Thickness: 0.4-2 mm
  • Min. Length: 360 mm
  • Min. Width: 45 mm
  • Max. Width: 1200 mm

Machine dimensions:

  • Length: 2600 mm
  • Width: 2000 mm
  • Height: 800 mm
  • Machine Weight: 2000 kg

The Longitudinal Glue Jointing machine MOD. G.L.C. 1200 is equipped with two tanks for the mass glue application. This innovation grants high quality and high jointing finishing since the glue is simultaneously applied on both edges to be jointed.
