GLUE DISPENSING MACHINE OMAL JOLLYCOLLA

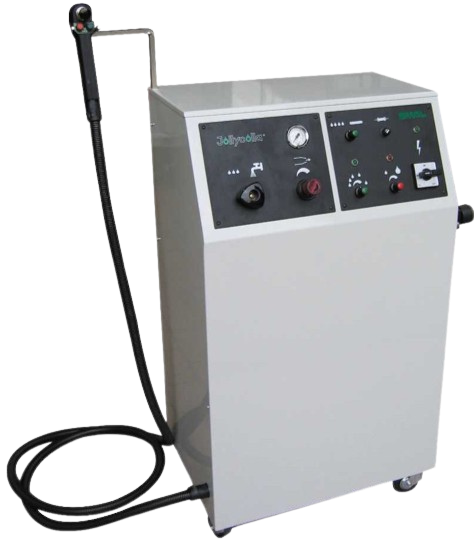

Automatic multifunctional Jollycolla glue dispensing machine designed for dispensing dosed amounts of glue in continuous or impulse mode.

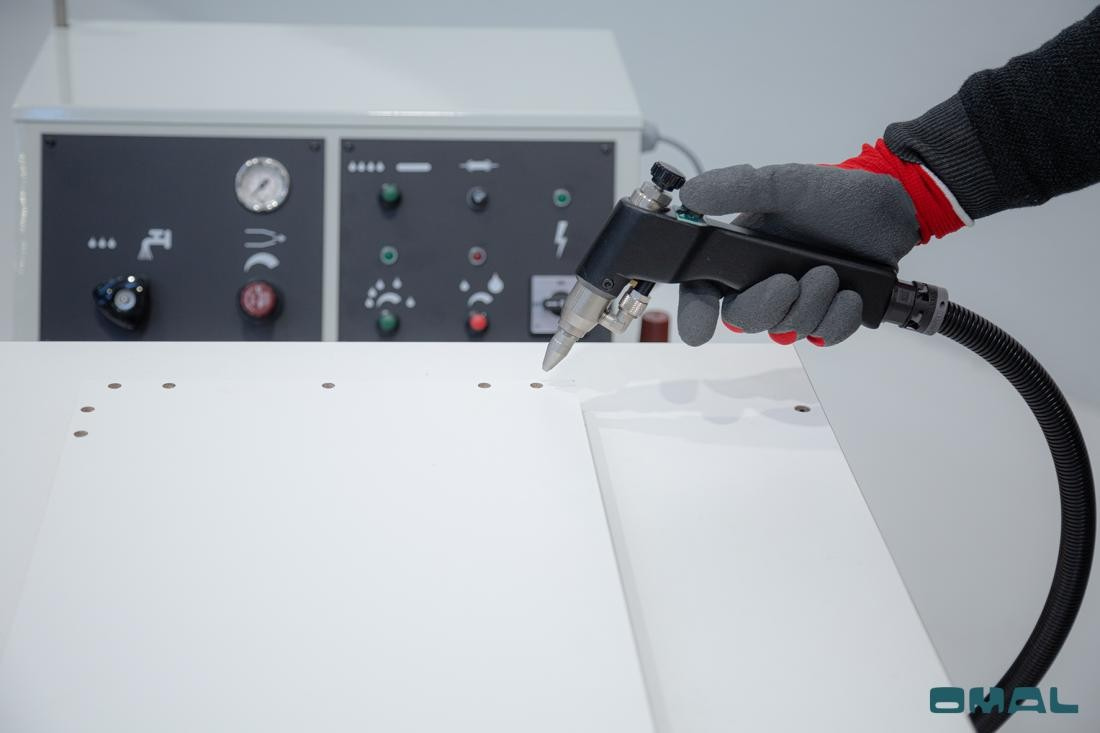

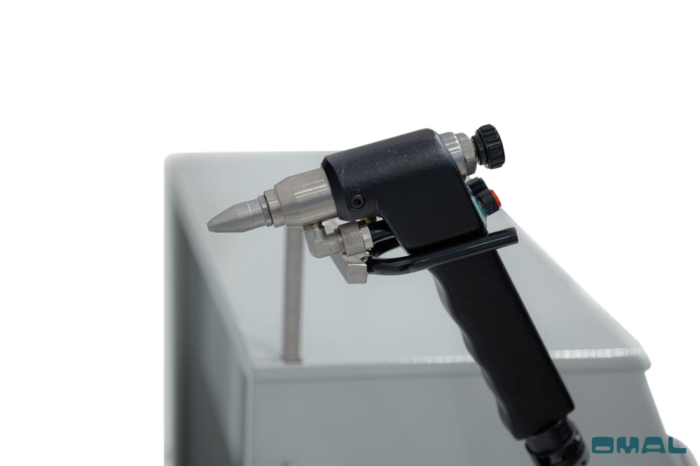

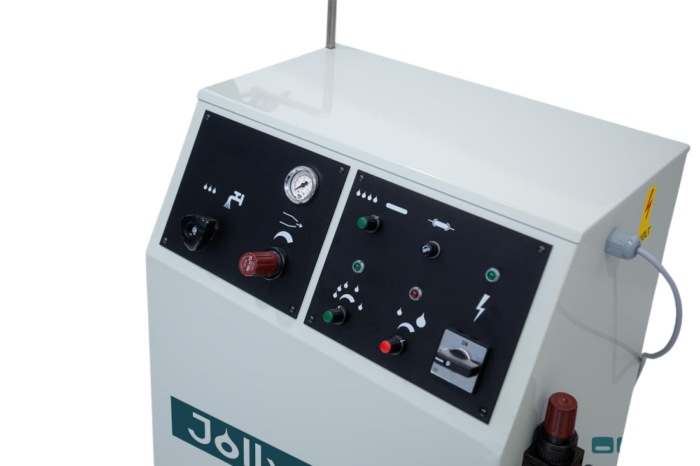

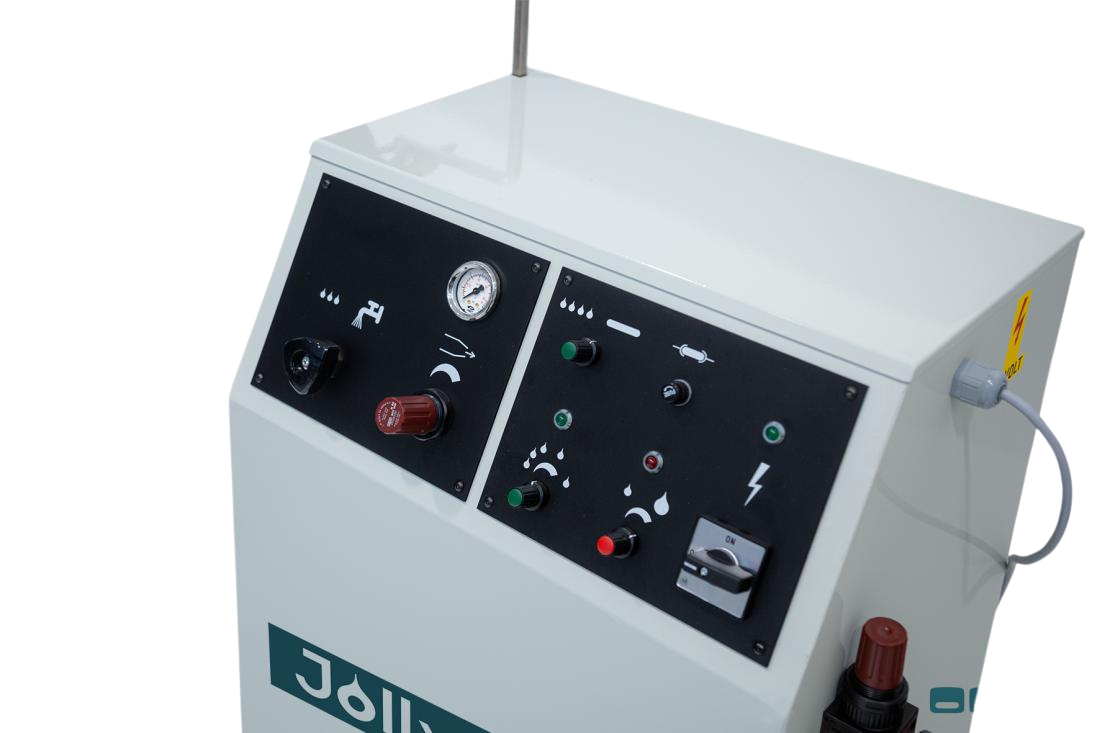

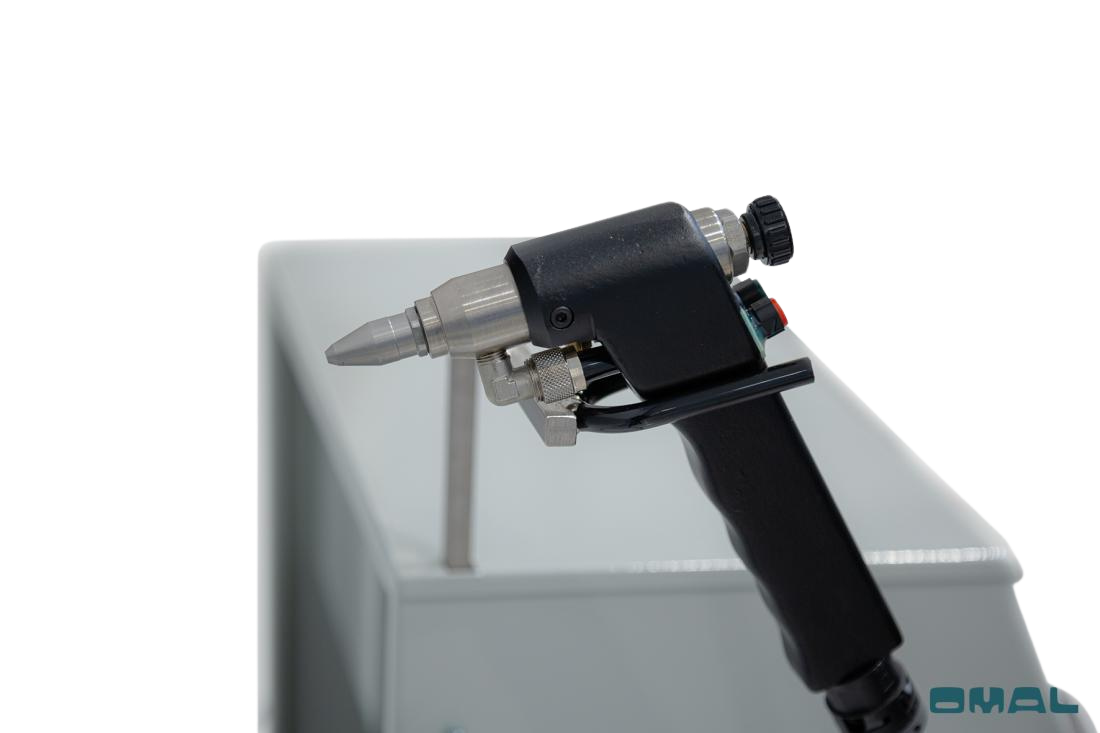

The regulation is carried out by means of potentiometers placed on the control panel controlled by an electronic card, while the distribution is controlled by one impulse by means of electric buttons located on the gun. The machine is equipped with two large pressure tanks, one for product application and one for washing liquid, together with a device selectable on the control panel.

• Glue tank capacity: 8 l,
• Wash tank capacity: 8 l,
• Air pressure: 1-6 atm,
• Glue Density: 1500-4000 cps*  (for lower densities, the device is supplied with the appropriate nozzle),
• Supply tube length: 3 m,
• Power Consumption: 250W,
• Voltage on Demand: Single Phase,
• Control voltage: 12V cc,
• Overall dimensions: 600x350x980 mm,
• Packaging dimensions: 900x400x700mm,
• Net weight: 40 kg,
• Gross weight: 45 kg.

*Measured with an Epprecht viscometer at 200 rpm and 20°C.
