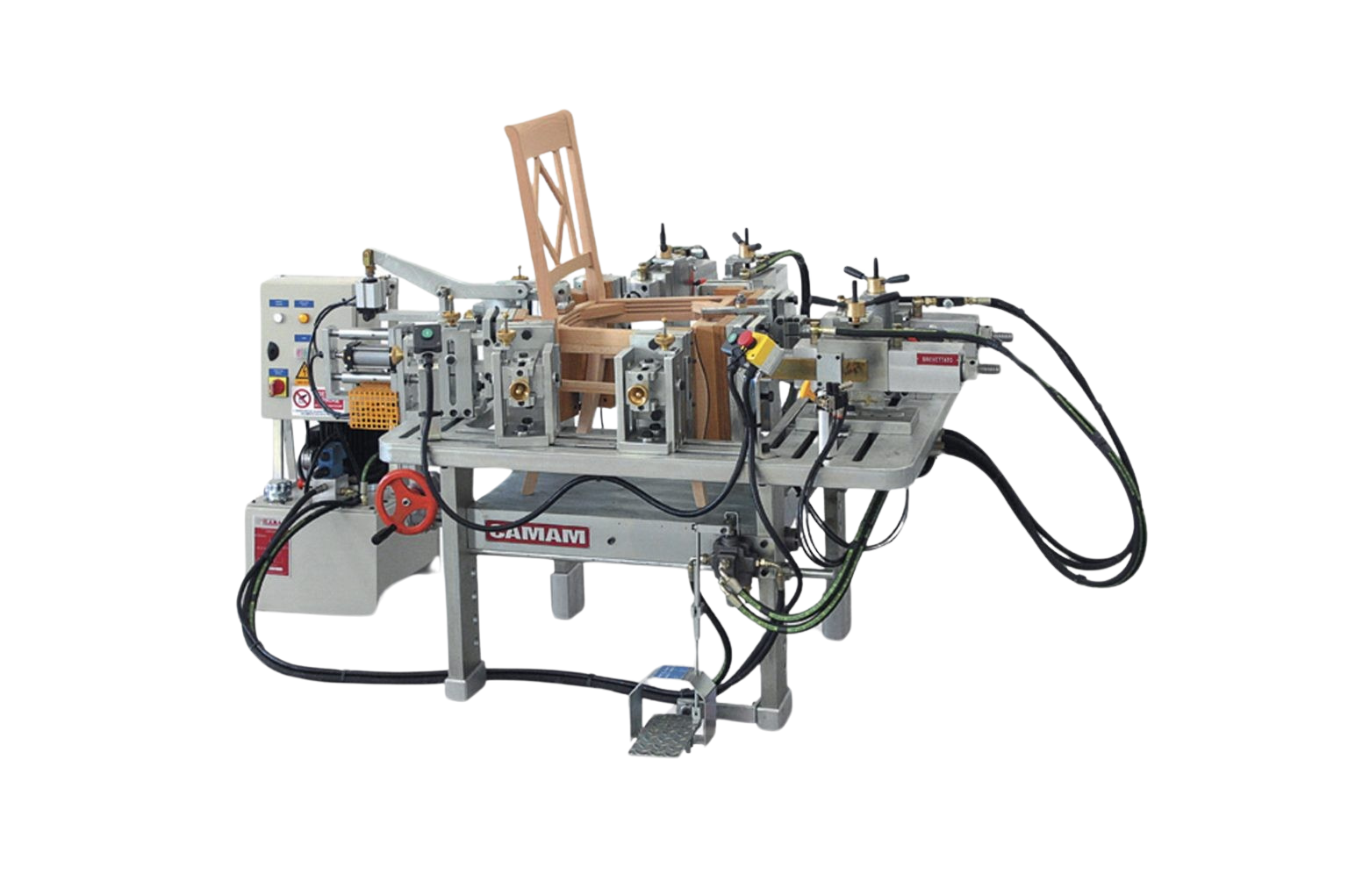

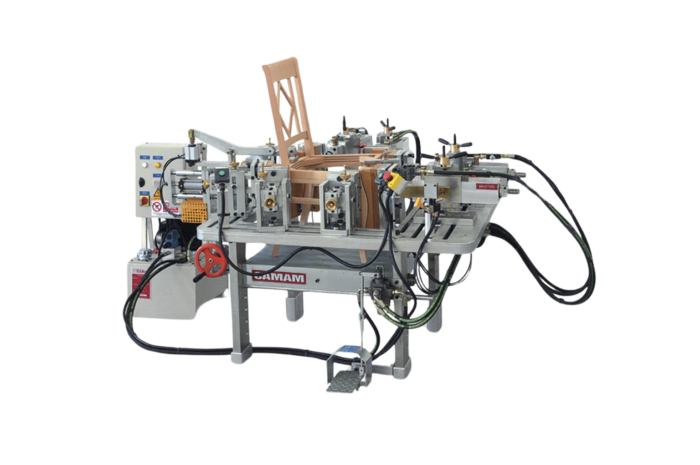

CHAIR PRESS MACHINE CAMAM SI/F/4C
Brand: Camam
The machine is used to connect chairs with separately mounted backrests.
Technical features and options
- Usable working dimensions: 750 x 750 mm
- Pump motor power: 4 kW
- Capacity of the pump supply tank: 40 l
Rigid body made of steel:
- Heavy 50mm thick support table with grooves to allow cylinders and dies to be moved
- The table is height-adjustable by means of a knob and a toothed mechanism
- 4 pcs. hydraulic cylinders moved on the table, together with the front beam for blocking wooden dies
- Actuators adjustable in height, depth, and longitudinally depending on the chair model. Actuators equipped with speed regulation and hoses adapted to work under high pressure
- 4 pcs. counter-die with tilted front plate, adjustable in height, depth, and lengthwise depending on the chair model
- Thanks to the design of the device, a large number of dies is not required to work
Included components:
- 1 pc Pedal to activate all 4 actuators
- 1 pc hydraulic pump
- 1 pc control panel
