Technical features and options

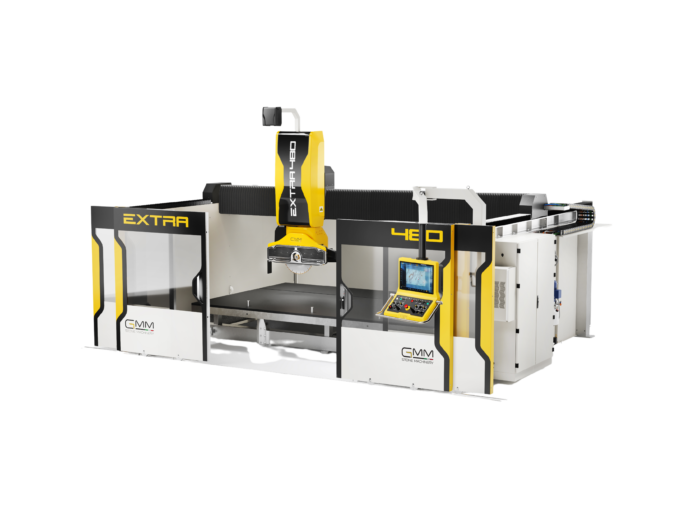

The machine combines extreme ease to use concept and intuitive programming. Extra 480 offers cad cuts, contouring, profiles and shapes, drilling, coring, bas-reliefs and lettering, offline programming.
• 370° rotating head, 90° tilting head
• Blade up to 625 mm (25 inches) diameter driven by frequency converter
• Vertical stroke (Z axis) of 480 mm (16 inch)
• Standard machine rails (Y axis) 3250 mm
• The main structures of the machine are in hot galvanized steel
• Automatic lubrication
• Sliding Safety barriers with polycarbonate panels with high visibility
• High speed, maximum precision thanks to brushless motors with absolute encoders, recirculating ball guides, precision gearboxes and interpolation of the axes with CNC
• 6000 rpm electrospindle with shaft drilled for water passage
• New Ergonomic Panel 21” multitouch LED color display with integrated machine controls, programming and control unit, USB port, LAN connection and remote service system
• Hydraulic tilting table driven by hydraulic cylinder with dedicated hydraulic power unit, structure in hot-dip galvanized steel with PVC table top
• Vacuum system with 3 sections
OPTIONAL EQUIPMENT
• Four position magnetic tool changer for auto changing core bits and router tools
• Side Aggregate Spindle 4 kw
