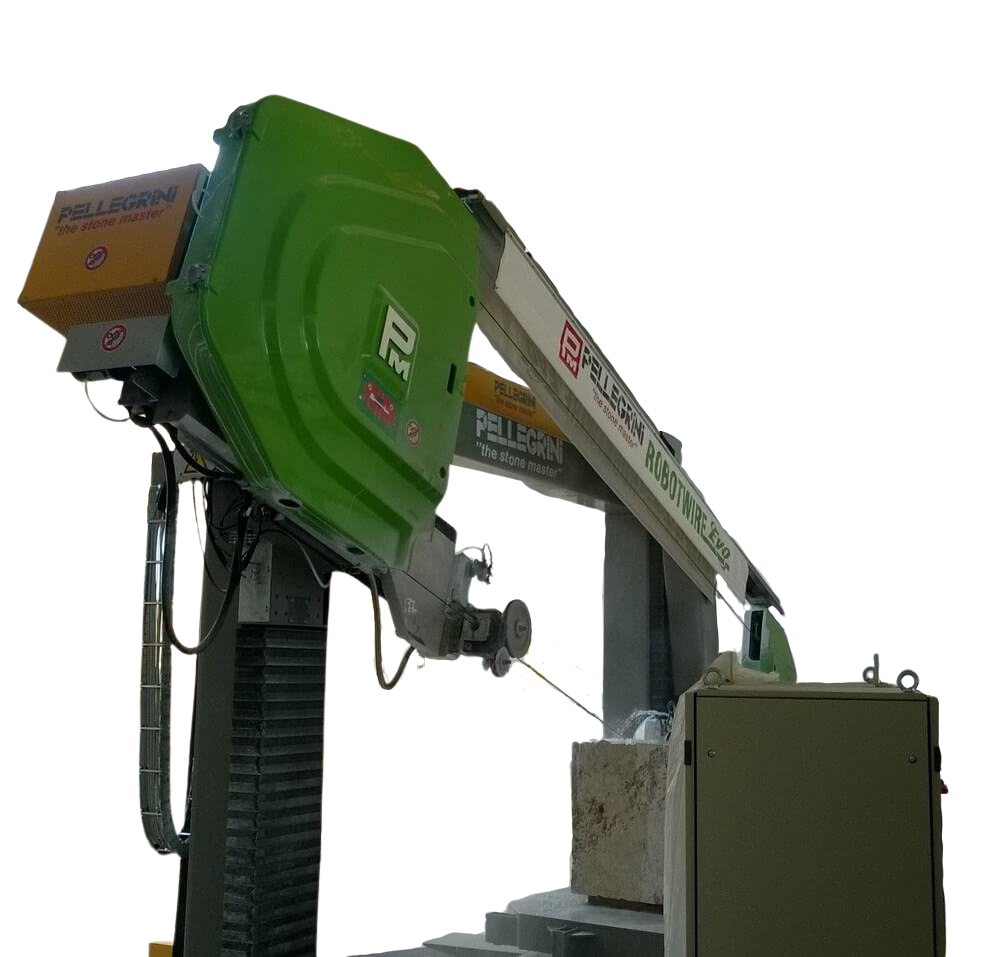

BLOCK CUTTING PELLEGRINI ROBOT WIRE EVO
Brand: Pellegrini
Single-wire profiler equipped with 7 controlled axes, capable of performing both two- and three-dimensional profiles, as well as columns, capitals, tombstone shapes, urban construction, cylindrical and conical profiles, and many more. It can create slabs of any desired thickness. The machine is primarily designed for profiling marble, granite, and other stones. However, with the use of the appropriate diamond wire, it can also profile other materials such as stone, glass, steel, and concrete.
Seven axes: independent movement of the two main flywheels up and down, shifting and rotating of the block carriage, separate rotation of the two guide wheels, and lengthening or shortening of the cross beam.
Technical features and options
- Maximum cutting length: 2.6 m
- Maximum cutting height: 1.7 m
- Installed power: 18 kW
- Main motor power: 11 kW
- Usable cutting depth: 2,500 mm
- Maximum load capacity on carriage: 18 T
- Length of joined wire: 19.4 m
- Total wire length: 19.3 m
