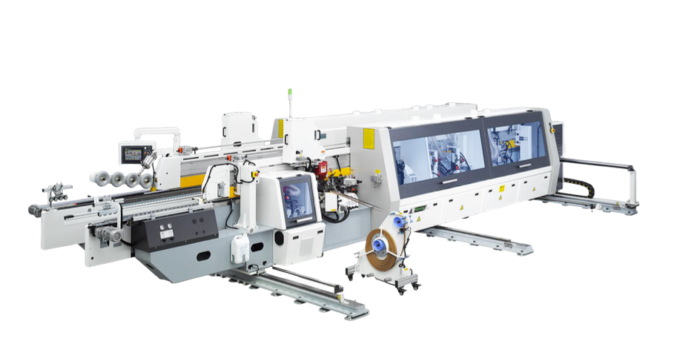

AUTOMATIC DOUBLE SIDED EDGE BANDING MACHINE NANXING NB7CCS2IIP

AUTOMATIC DOUBLE SIDED EDGE BANDING MACHINE NANXING NB7CCS2IIP

Categories: ,

Brand: Nanxing

Edge banding of two sides edge could be done in one process. Panels are evenly pressed by V-belt to maximize stability; 2 tapes changing system; Large pre-melt tank allows sufficient glue for even fast continuous edge banding; Use of dual rails for end trimming, efficient with higher performance; Fine trimming /scraping units adjustable for different thickness by cylinders.

Technical features and options

  • Panel width: 285-2440 mm,
  • Panel thickness: 10-60 mm,
  • Edge tape thickness: 0.4-3 mm,
  • Feeding speed: 16-26m/min,
  • Power supply: 380 V; 50 Hz,
  • Air pressure required: 0.7 MPa,
  • Operation system 7’’ touch screen,
  • Dust collector: Φ125mm×14,
  • Total power: 39.8 kW,
  • Approx. weight: 12,980 kg,
  • Overall dimension: 10,950*4,400*1,950 mm,
